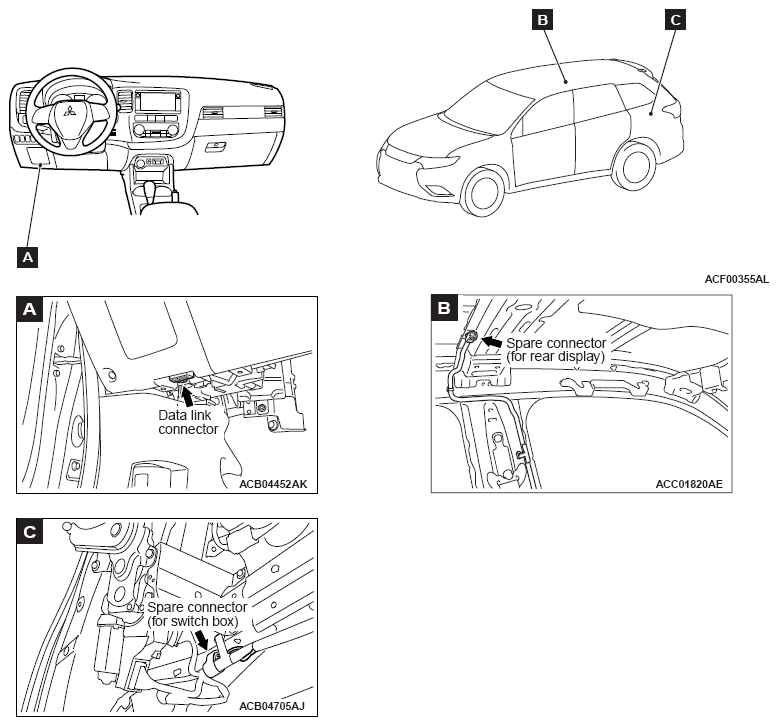

Inspection Terminal
Name
Symbol
Name
Symbol
Data link connector
A
Spare connector (for switch box)
C
Spare connector (for rear display)
B
