Grounding Cable

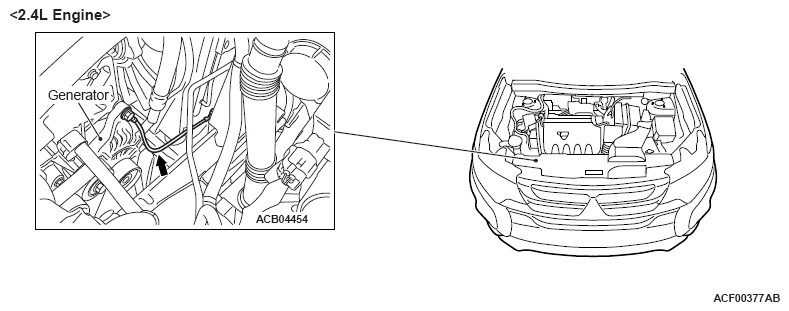

<2.4L Engine>

G12371120Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

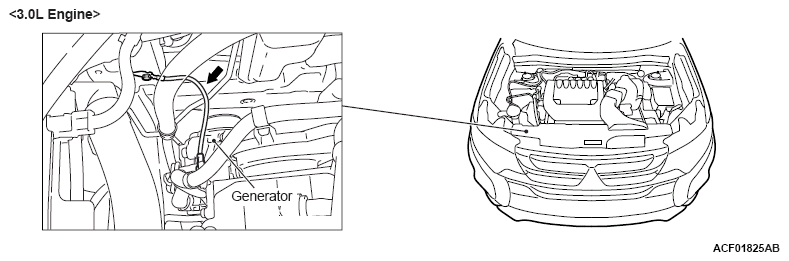

<3.0L Engine>

G12371121Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
