Removal And Installation <3.0L Engine>: Notes
Pre-removal Operation
Fuel Discharge Prevention [Refer to
FUEL PUMP CONNECTOR DISCONNECTION (HOW TO REDUCE PRESSURIZED FUEL LINES)
].
Intake Manifold Plenum Removal (Refer to
INTAKE MANIFOLD PLENUM <3.0L ENGINE>
).
Post-installation Operation
Intake Manifold Plenum Installation (Refer to
INTAKE MANIFOLD PLENUM <3.0L ENGINE>
).
Fuel Leakage Inspection

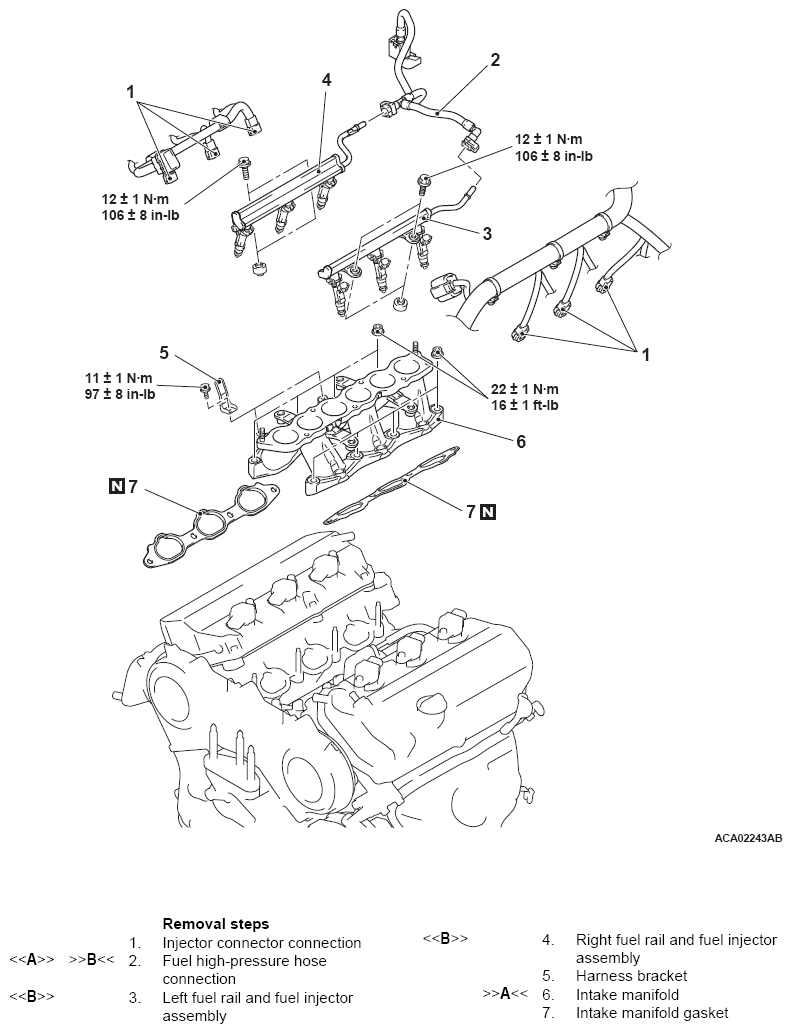

Fig 1: Removing/Installing Intake Manifold Components Location With Torque Specification (3.0L Engine)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
