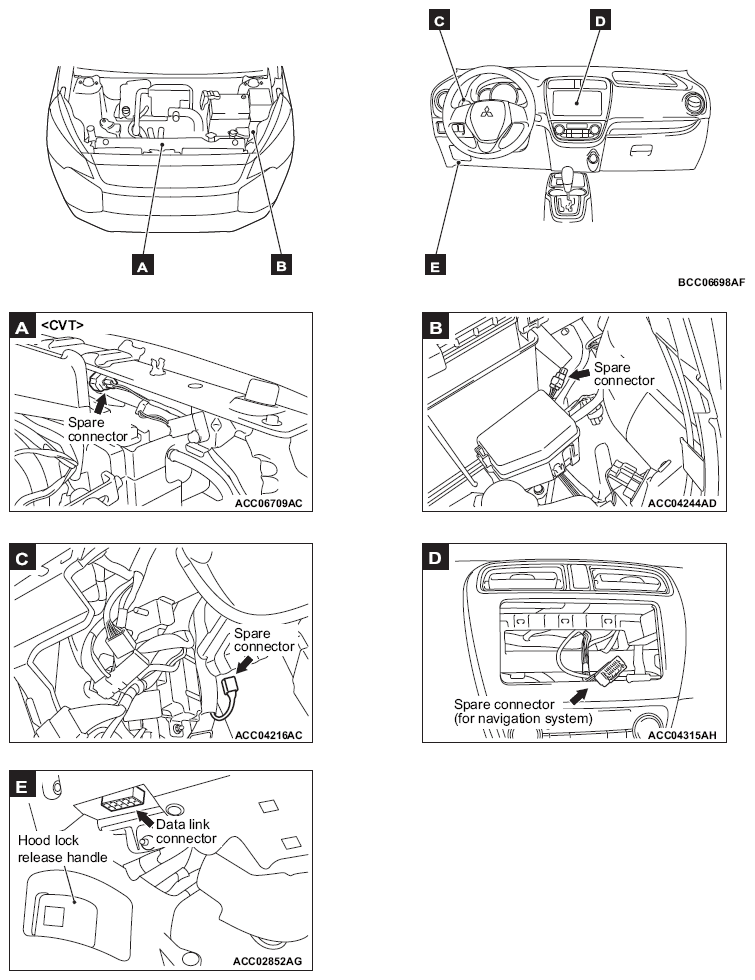

Inspection Terminal

Name Symbol Name Symbol
Data link connector E Spare connector (for navigation system) D
Spare connector B Spare connector <CVT> A
Spare connector C
G13781377Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
