Component Locations: Grounding

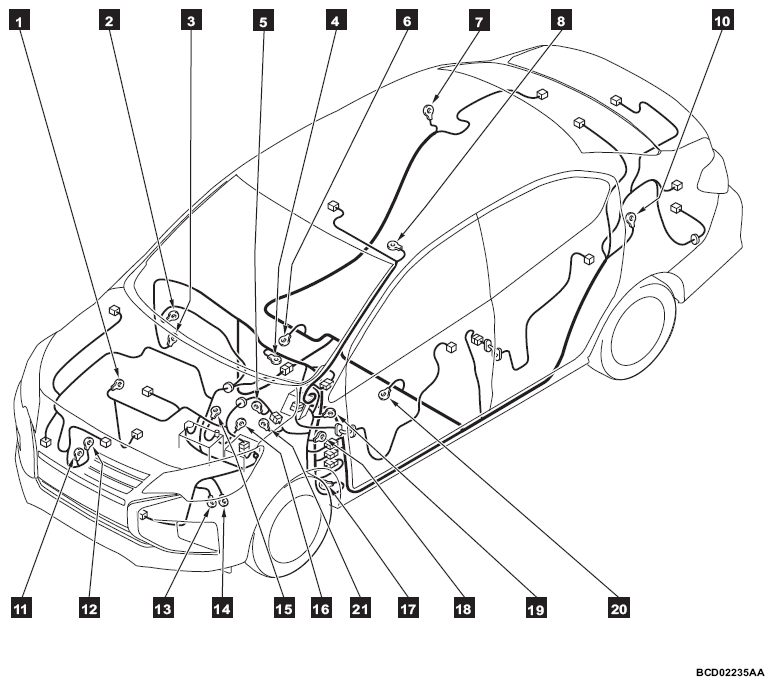

G13781379Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Same ground numbers are used in the circuit diagram.

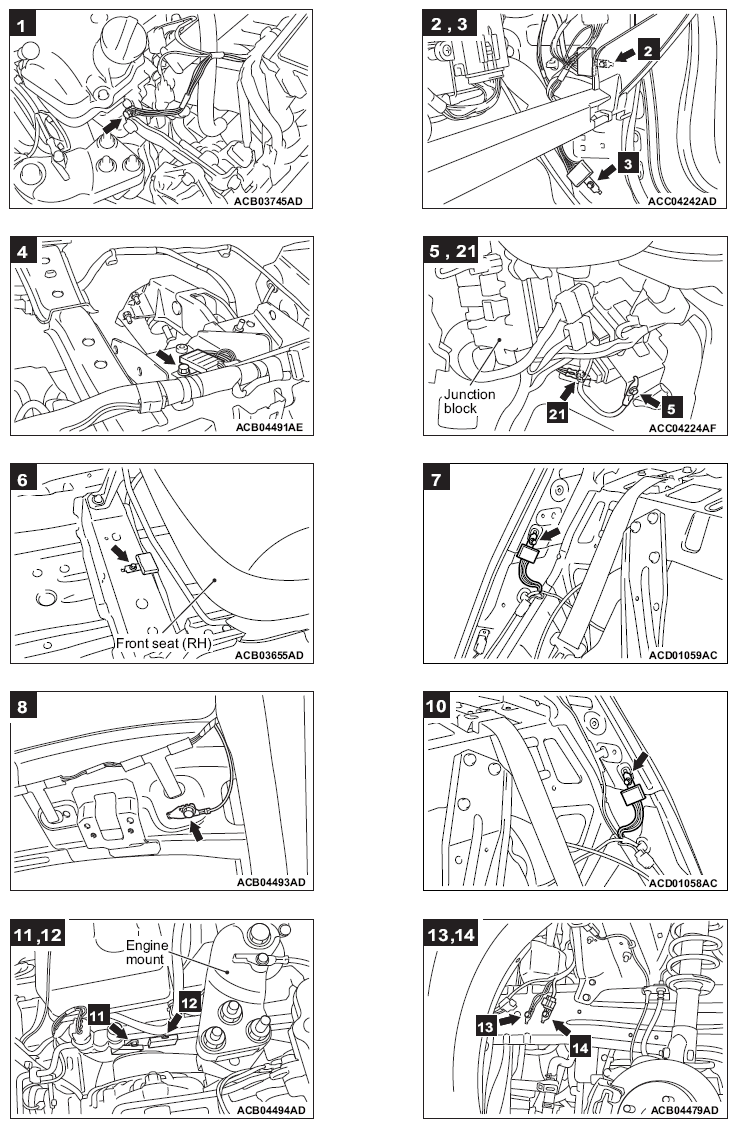

G13781380Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

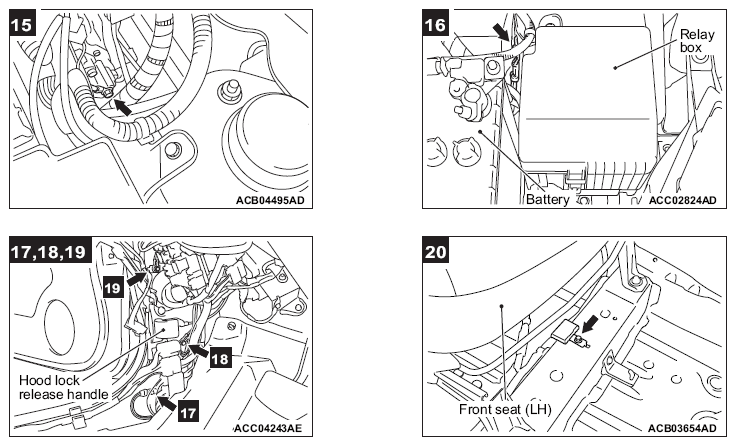

G13781381Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
