Engine Compartment

G13751798Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G13751799Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

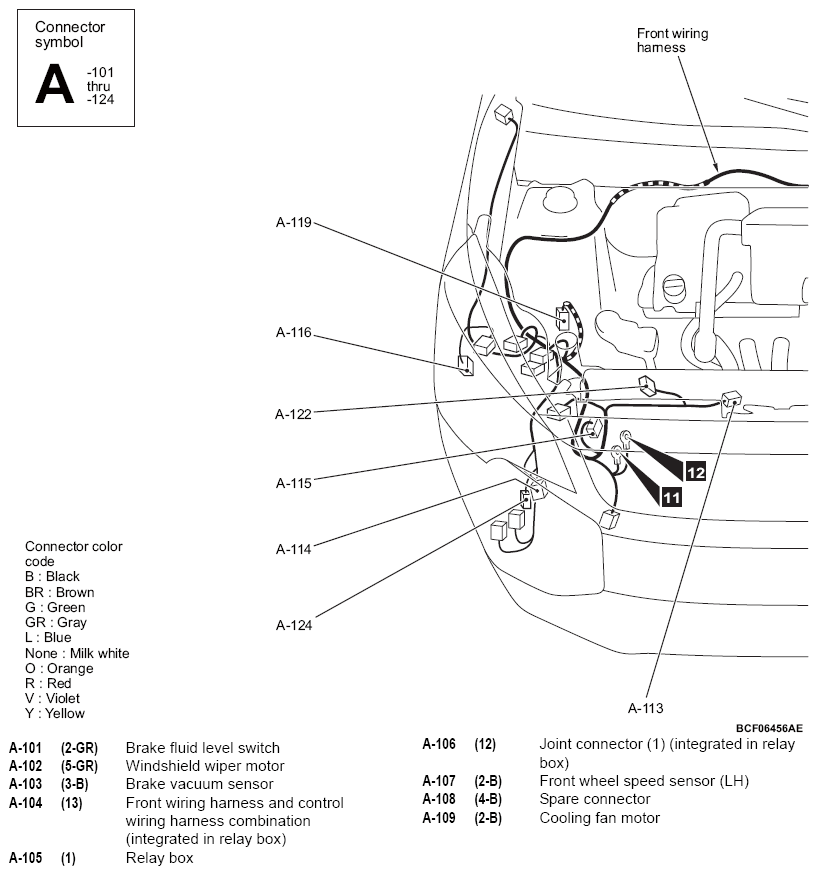

G13751800Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
G13751801Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
