Removal And Installation: Notes

Pre-removal Operation Post-installation Operation

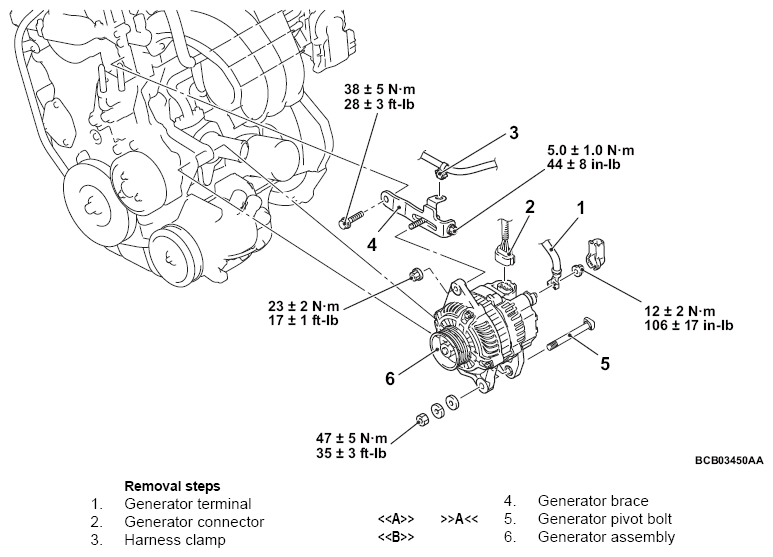

Fig 1: Removing/Installing Generator Assembly Components With Torque Specifications
G13734266Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
