Removal And Installation: Notes

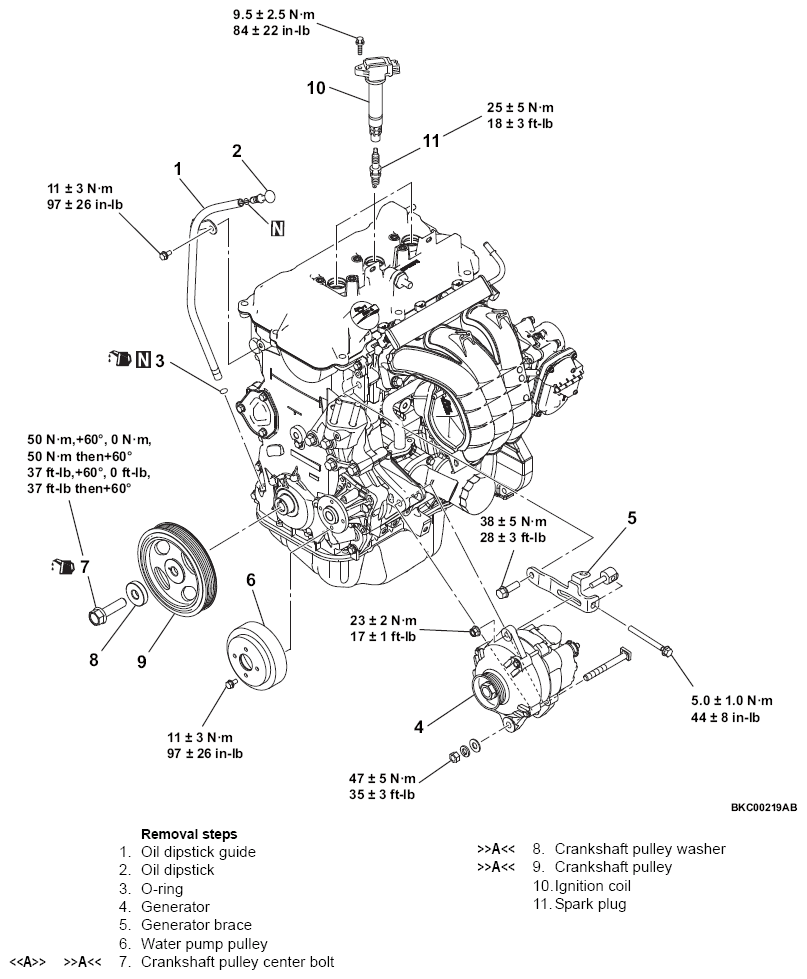

Fig 1: Removing/Installing Generator And Ignition System Components With Torque Specifications
G13733715Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
