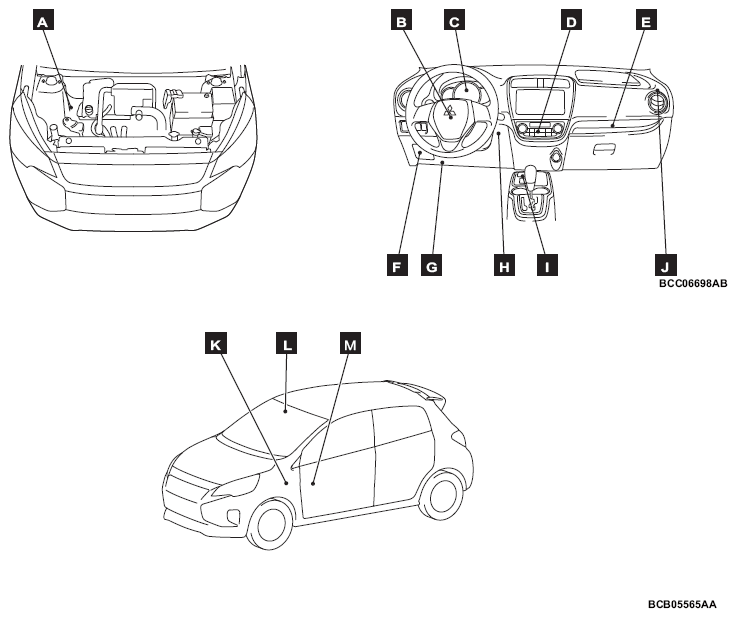

Control Unit
| Name | Symbol | Name | Symbol |
|---|---|---|---|

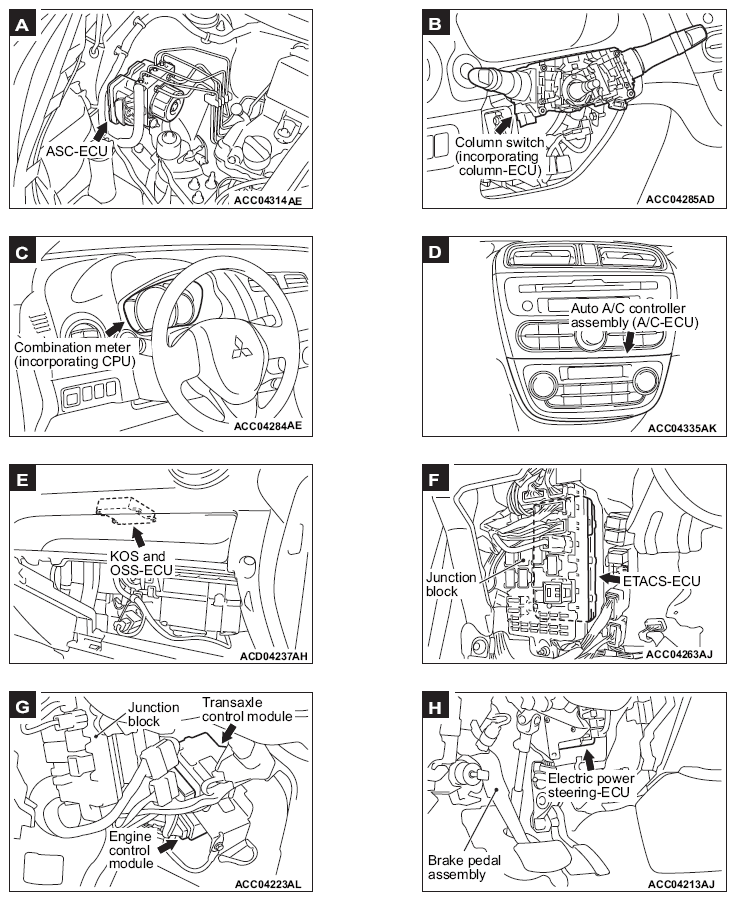

| ASC-ECU | A | ETACS-ECU | F |
| Auto A/C controller assembly (A/C-ECU) | D | FCM/LDW/AHB-ECU | L |
| Column switch (incorporating column-ECU) | B | KOS and OSS-ECU | E |
| Combination meter (incorporating CPU) | C | Occupant classification-ECU | K |
| Transaxle control module <CVT> | G | PTC heater control unit | J |
| Engine control module | G | Power window main switch (incorporating CPU) <Vehicles with safety system> | M |

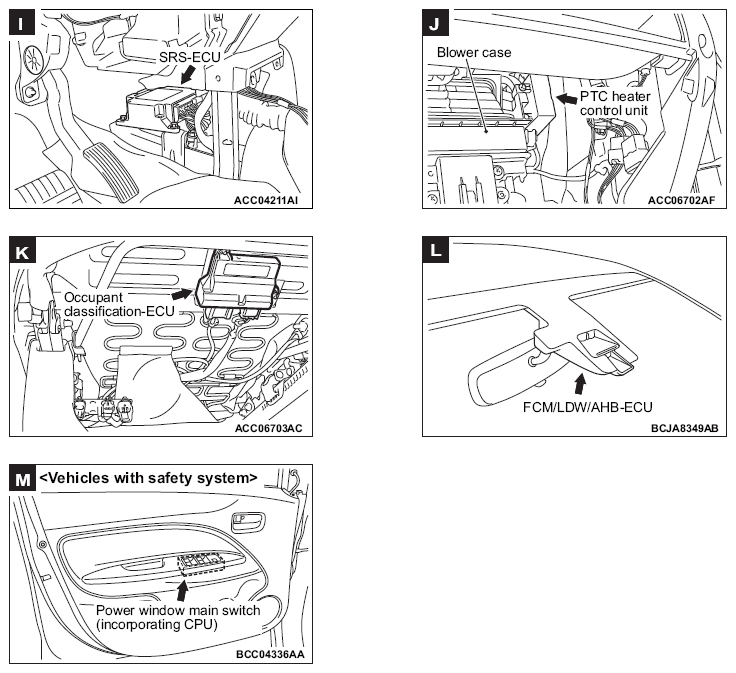

| Electric power steering-ECU | H | SRS-ECU | I |
