Removal And Installation: Notes

CAUTION: Do not drop or hit the crankshaft position sensor against other components. Internal damage may result, and the crankshaft position sensor will need to be replaced.

Pre-removal and post-installation operation

Air Cleaner Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

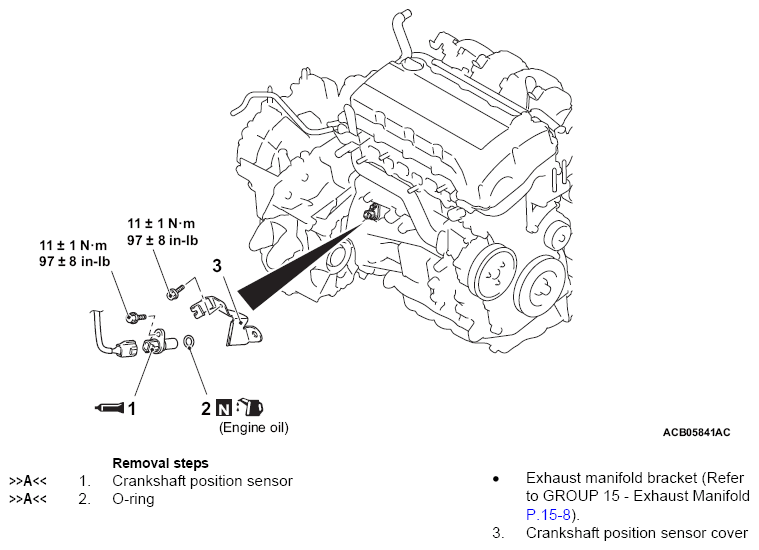

Fig 1: Removing/Installing Crankshaft Position Sensor Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
