Removal And Installation: Notes

CAUTION: Do not drop or hit the knock sensor against other components. Internal damage may result, and the knock sensor will need to be replaced.

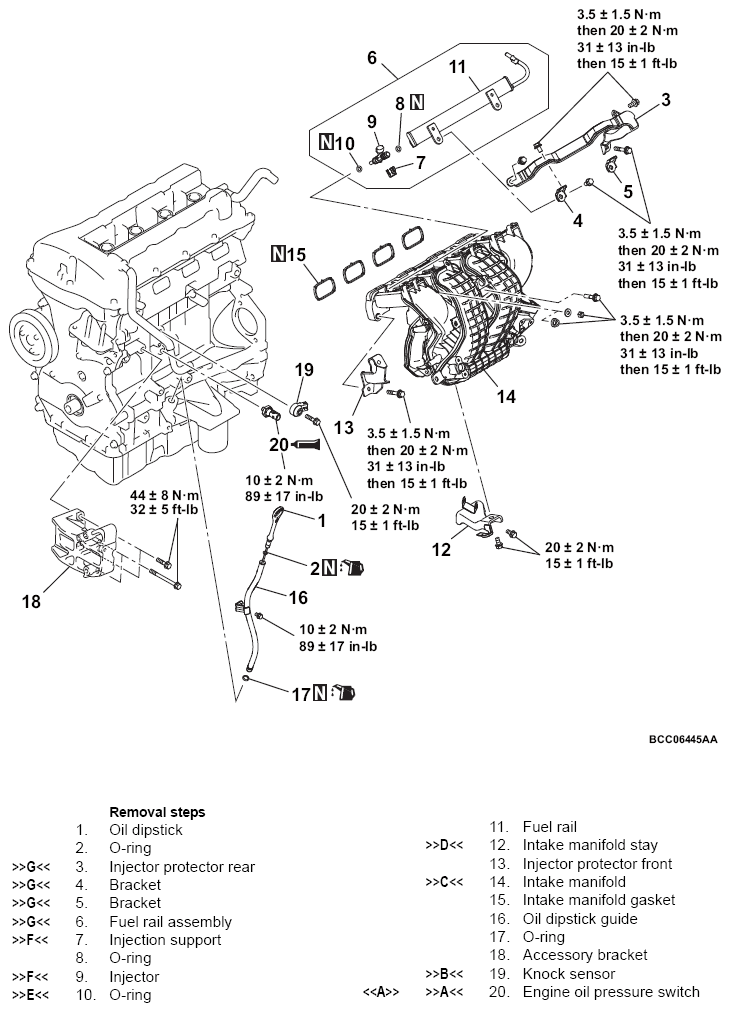

Fig 1: Removing/Installing Intake Manifold And Fuel System Components With Torque Specifications
G13782068Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
