Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The outboard joint assembly <RH> cannot be disassembled.

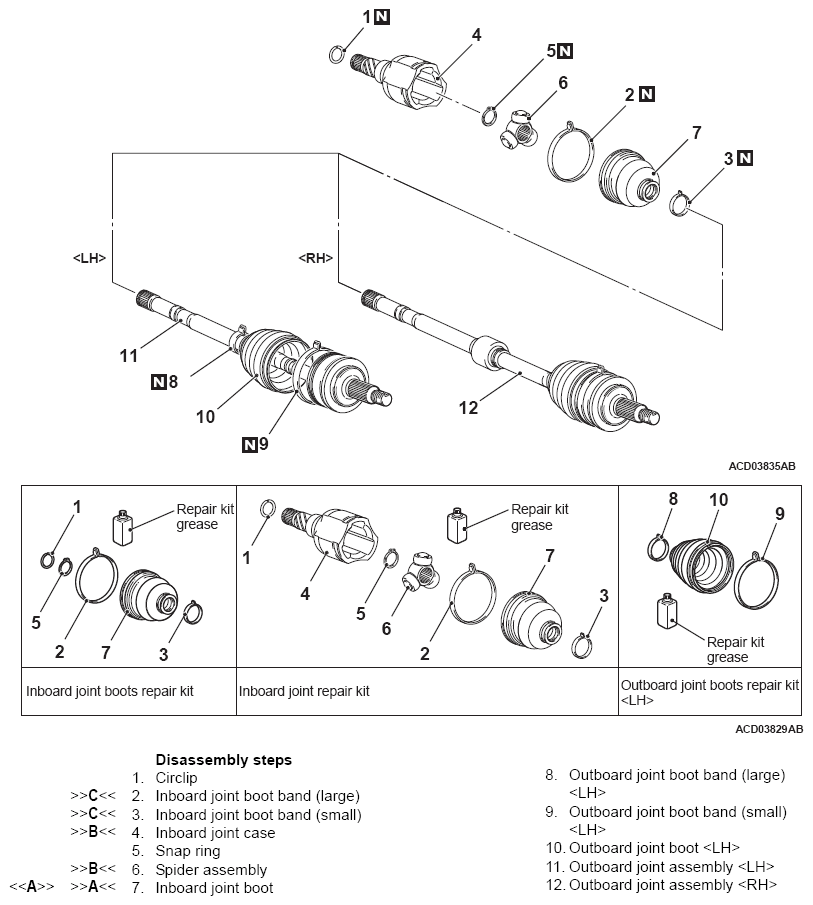

G13500457Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
