Removal And Installation: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • The wheel speed detection magnetic encoder collects metallic particles easily, because it is magnetized. Make sure that the magnetic encoder should not collect metallic particles. Check that there is not any trouble prior to reassembling it.
  • When removing and installing the driveshaft assembly, make sure that the wheel speed detection magnetic encoder (integrated with the inner oil seal) does not contact with surrounding parts to avoid damage.
  • The parts indicated by * are the nuts with friction coefficient stabilizer. Prior to reinstallation, ensure there is no damage, clean dust and soiling from the bearing and thread surfaces, and tighten them to the specified torque.
Pre-removal Operation
  • Engine Room Under Cover Removal (Refer to UNDER COVER ).
  • Front Transaxle Fluid Draining (Refer to On-vehicle Service, Transaxle Fluid Change TRANSAXLE FLUID CHANGE ).
 Post-installation Operation
  • Front Transaxle Fluid Refilling (Refer to On-vehicle Service, Transaxle Fluid Change TRANSAXLE FLUID CHANGE ).
  • Using Your Fingers, Press the Ball Joint Dust Cover to Check for a Crack or Damage.
  • Engine Room Under Cover Installation (Refer to UNDER COVER ).
  • Check the Beam Direction of the Headlight (Low Beam) (Refer to Headlight Aiming).

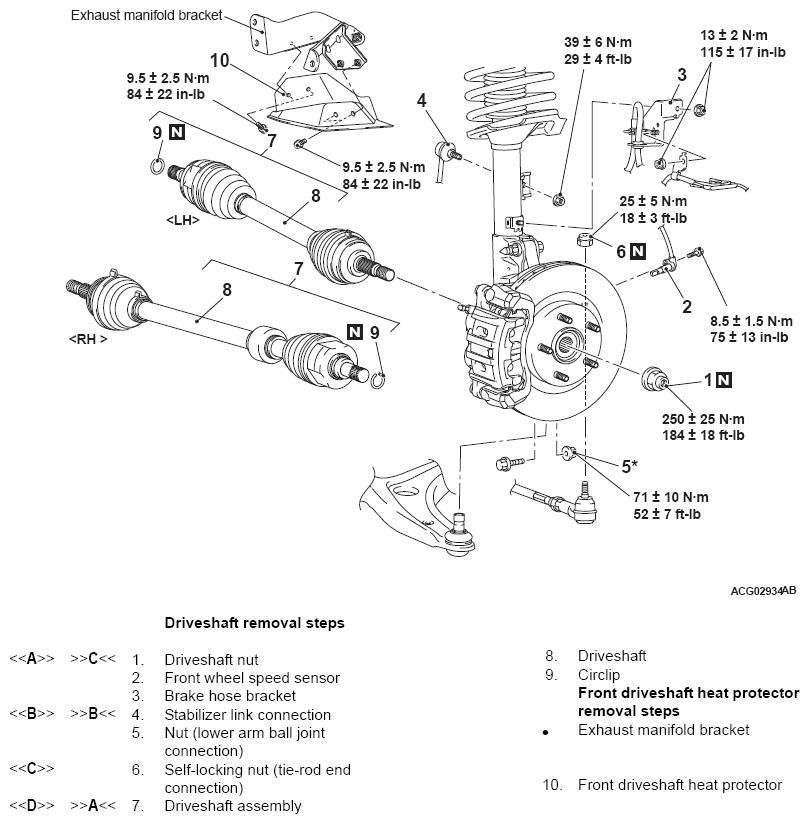

Fig 1: Removing/Installing Driveshaft Assembly Components With Torque Specification
G13500440Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
