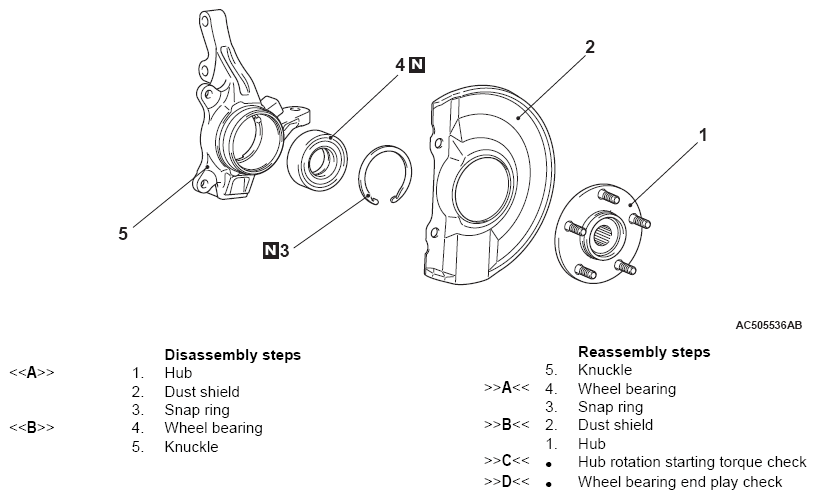

Disassembly And Reassembly: Notes

WARNING: This page is about a different car, the 2020 Mitsubishi Outlander PHEV. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

MB990326: Preload Socket
MB990890: Rear Suspension Bushing Base
MB990935: Installer Adapter
MB990938: Installer Bar
MB991000: Spacer
MB991017: Front Hub Remover and Installer
MB991099: Oil Seal Installer Guide
MB991355: Knuckle Arm Bridge
MB991388: Bush Remover Base
MB991576: Base
MB992150: Oil Seal Installer
MB992250: Knuckle Arm Bridge Attachment
MD999528: Adapter
MD998801: Remover
MD998812: Installer Cap
MD998813: Installer
