Removal And Installation: Notes

CAUTION: For the removal of the headlining, refer to (Refer to SERVICE PRECAUTIONS ) and (Refer to CURTAIN AIR BAG MODULE(S) ).
Pre-removal and Post-installation Operation
  • Front Pillar Trim, Rear Scuff Plate, Front Scuff Plate, Cowl Side Trim, Upper Center Pillar Trim, Lower Center Pillar Trim, Front Door Opening Trim, Rear Door Opening Trim, Quarter Trim Lower, Quarter Trim Upper, Rear End Trim, Rear Pillar Trim Removal and Installation (Refer to INTERIOR TRIM  ).
  • Front Door Assembly (RH) Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
  • Instrument Panel Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION  ).
  • Front Seat Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION  ).
  • Front Floor Console Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION  ).
  • Center Flame Assembly Removal and Installation (Refer to REMOVAL AND INSTALLATION ).
  • Front Deck Crossmember Removal and Installation (Refer to REMOVAL AND INSTALLATION ).

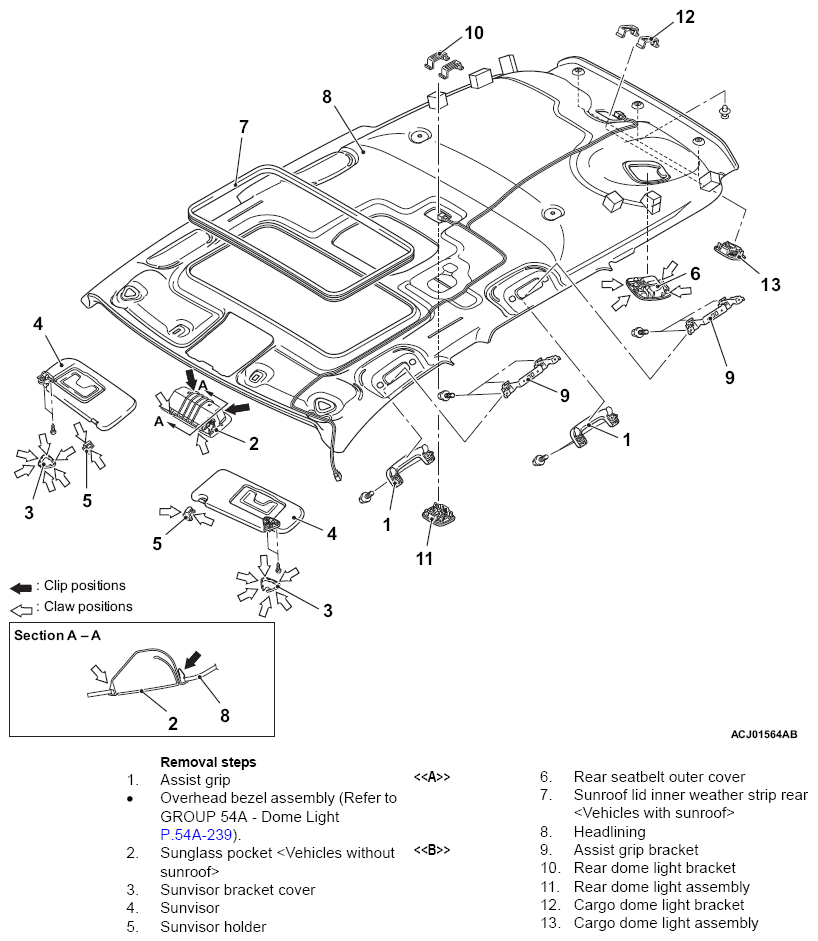

G13783676Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
