Disassembly And Assembly: Notes

CAUTION:
  • As for the outboard joint assembly, only the outboard joint boot can be replaceable, and other parts cannot be disassembled.
  • The outboard joint boot for FWD-RH is not replaceable.

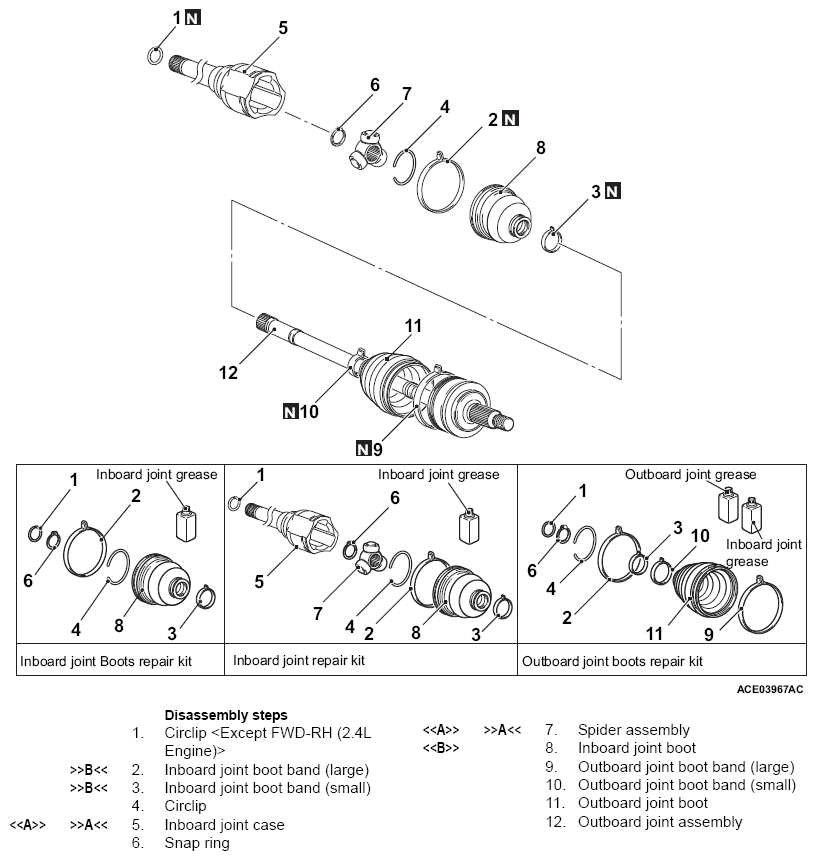

G14213228Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
