Removal And Installation: Notes

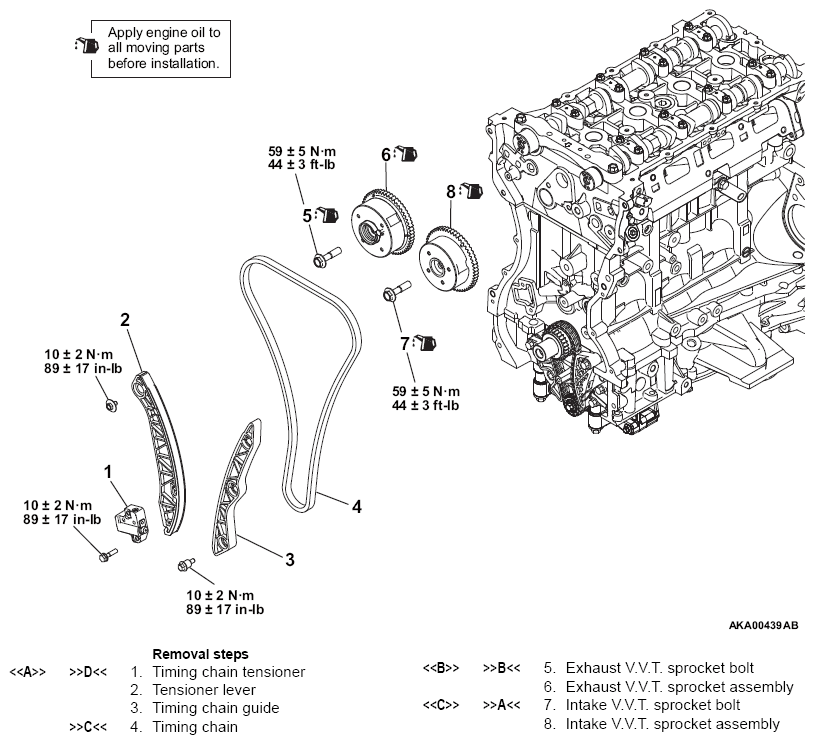

Fig 1: Removing/Installing Timing Chain Components Location With Torque Specification
G14221142Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
