Removal And Installation: Notes

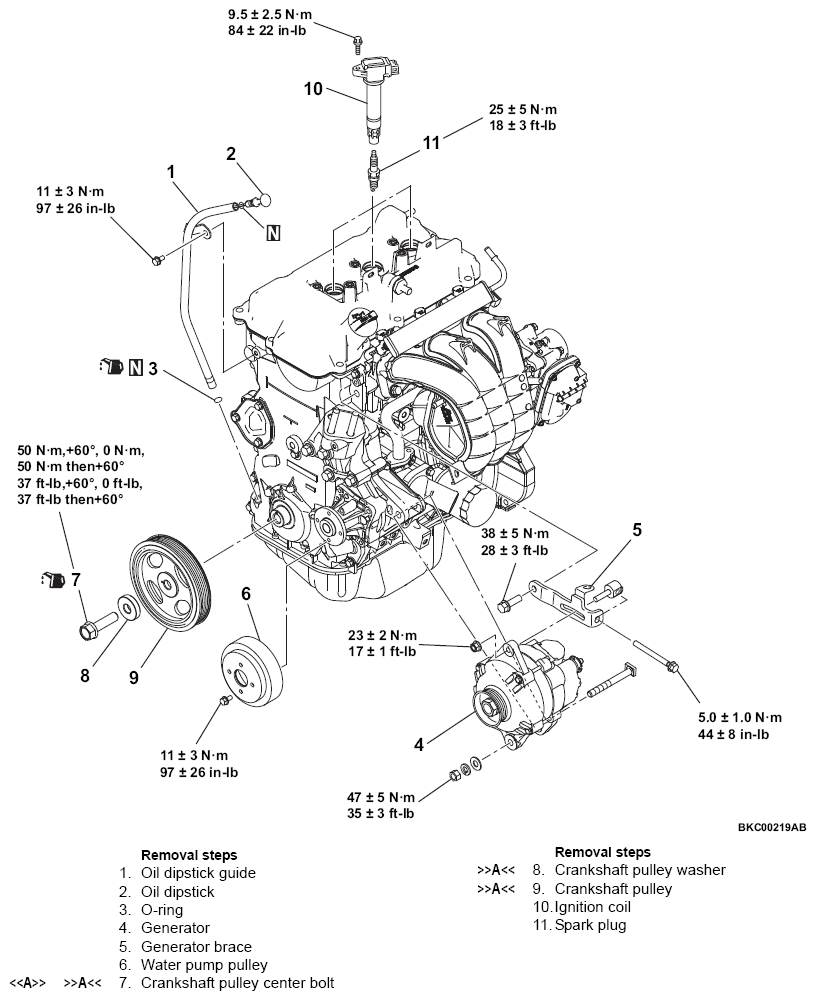

Fig 1: Removing/Installing Generator And Ignition System Components Location With Torque Specification
G14340454Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tool:
