Removal And Installation: Notes

CAUTION:

Before removing the front seat assembly, refer to SERVICE PRECAUTIONS and SIDE AIRBAG MODULE(S) .
Before removing the front seat assembly, refer to OCCUPANT CLASSIFICATION ECU , OCCUPANT CLASSIFICATION SENSOR .

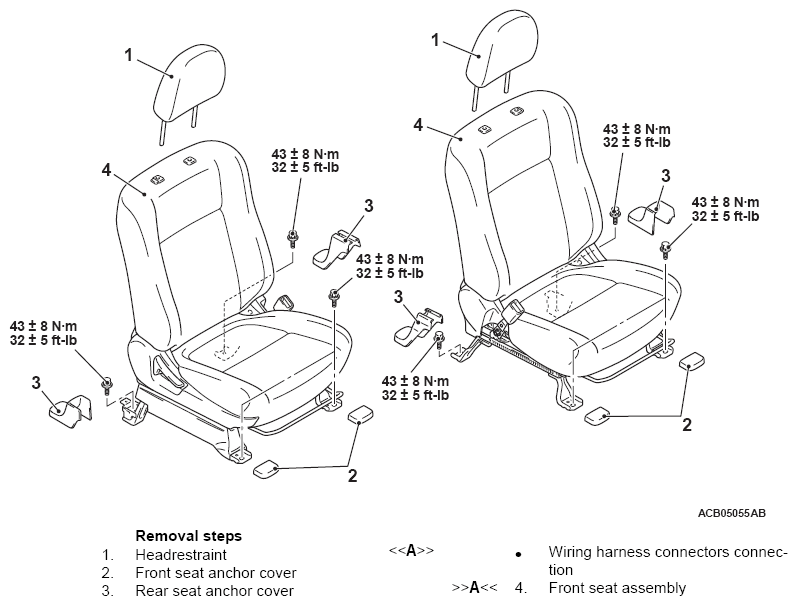

Fig 1: Removing/Installing Front Seat Assembly Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
