Disassembly And Reassembly: Notes

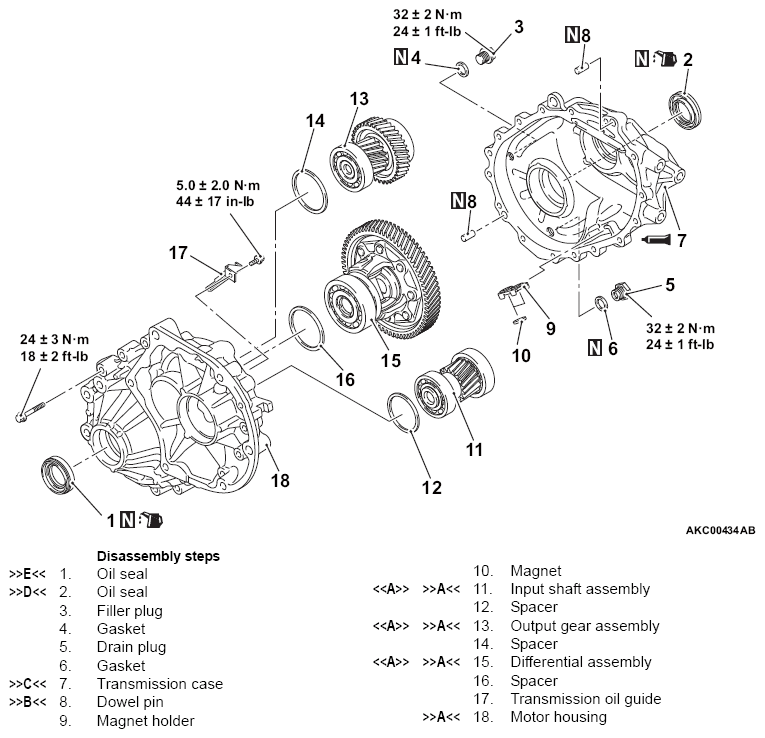

Fig 1: Disassembling/Reassembling Rear Transaxle Components Location With Torque Specification
G14354219Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required special tools:
