>>A<< Regulator Assembly Installation

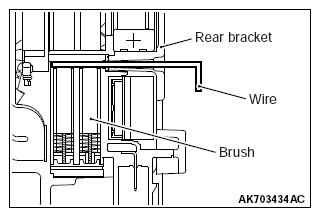

After installing the regulator assembly, insert a piece of wire through the hole in the rear bracket while pressing the brush to keep the brush against movement.
NOTE:
Unless inserting the wire to fix the brush, the rotor installation is difficult.
