>>C<< Front Bracket Assembly Installation

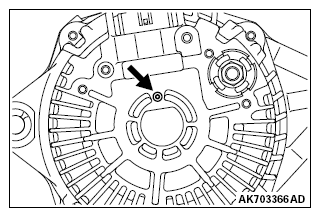

Remove the brush holding wire after the rotor has been installed.

G13329837Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
