Removal And Installation: Notes

Pre-removal Operation	Post-installation Operation
Engine Room Under Cover Front Removal (Refer to UNDER COVER).	Engine Room Under Cover Front Installation (Refer to UNDER COVER).

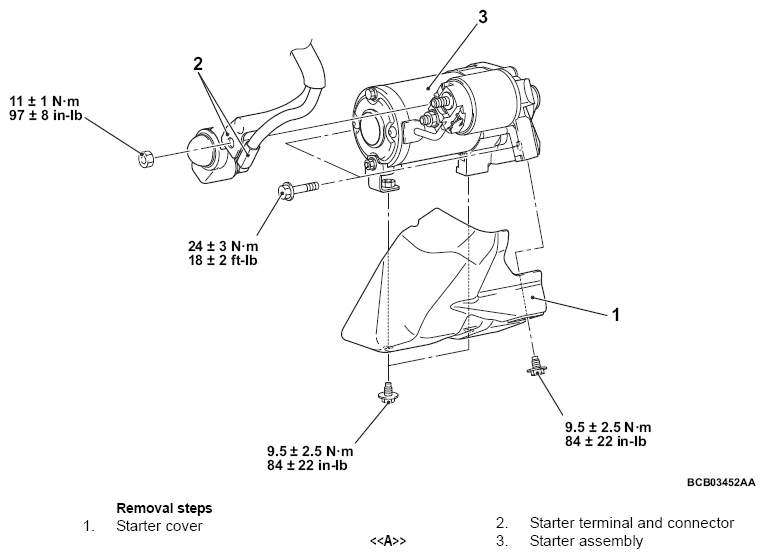

Fig 1: Removing/Installing Starter Motor Assembly Components Location With Torque Specification

Courtesy of \
