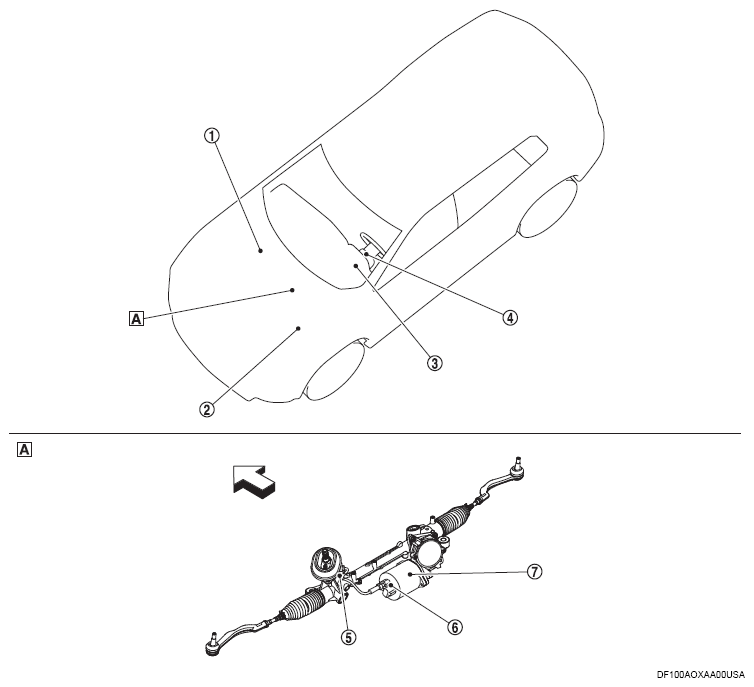

Component Parts Location
| (A) | Steering gear assembly |
| (1) | ABS actuator and electric unit (control unit) Refer to ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) for detailed installation location. |
| (2) | ECM Refer to COMPONENT PARTS LOCATION for detailed installation location. |
| (3) | Combination meter Refer to COMPONENT PARTS LOCATION (full TFT meter), COMPONENT PARTS LOCATION (7 inch information display) for detailed installation location. |
| (4) | Steering angle sensor Refer to STEERING ANGLE SENSOR for detailed installation location. |
| (5) | Power steering torque sensor |
| (6) | Power steering control unit |
| (7) | EPS motor |
