Exploded View

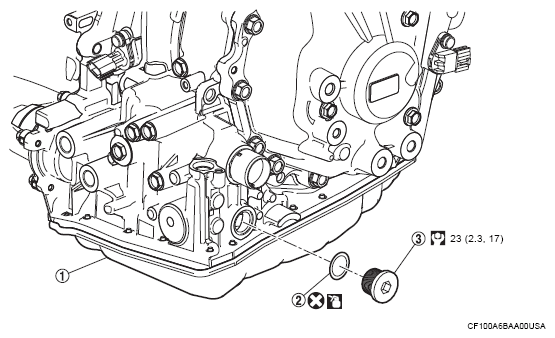

Fig 1: Removing/Installing Plug Components Location With Torque Specification
G16071496Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
(1) Transaxle assembly
(2) O-ring
(3) Plug
: N.m (kg-m, ft-lb)
: Always replace after every disassembly.
: Apply CVT fluid.
