Disassembly And Assembly: Notes

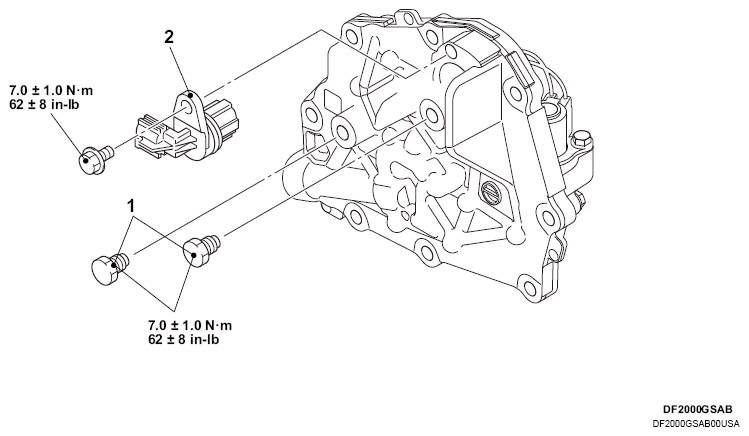

Fig 1: Disassembling/Assembling Valve Body Components Location With Torque Specifications
G16315387Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
      Disassembly steps
    1. Plug
<<A>>  >>A<<  2. Connector
