 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|

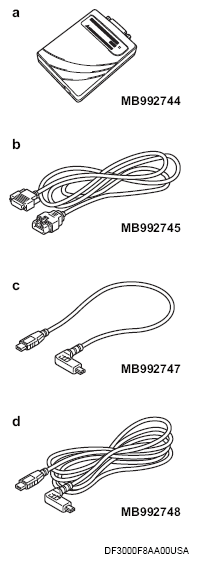

Scan tool (M.U.T.-III SE)
- MB992744
Vehicle communication interface-Lite (V.C.I.-Lite)
- MB992745
V.C.I.-Lite main harness A (for vehicles with CAN communication)
- MB992747
V.C.I.-Lite USB cable short
- MB992748
V.C.I.-Lite USB cable long
|
- |
Transaxle and electrical parking driver unit inspection |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MB991223
Wiring harness set
- MB991219
Check harness
- MB991220
LED harness
- MB991221
LED harness adapter
- MB991222
Probe
|
General service tools |
Continuity check and voltage measurement at wiring harness or connector
- For checking connector pin contact pressure
- For checking power supply circuit
- For checking power supply circuit
- For connecting a locally sourced tester
|
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MB992006
Extra fine probe |
- |
Continuity check and voltage measurement at wiring harness or connector |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MD998330
Oil pressure gauge (3.0 MPa, 435 psi)
- MD998331
Joint
|
MD998330-01 |
Hydraulic pressure measurement |
 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
|
MD998332
Joint |
- |
