Power Flow

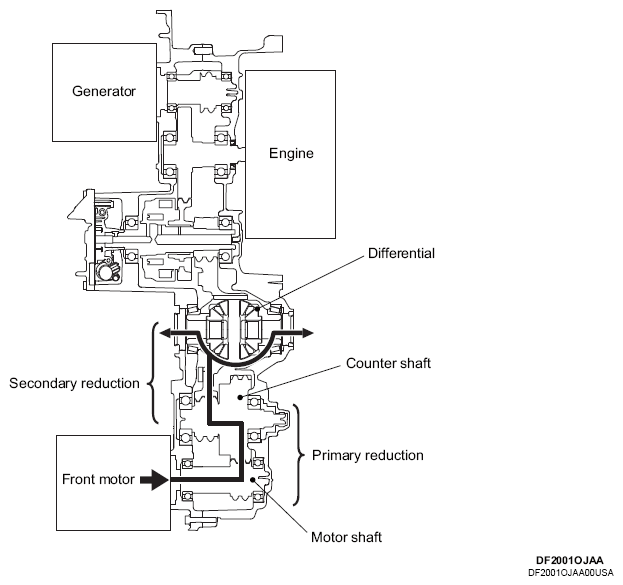

EV DRIVE MODE

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• The system transmits the driving force generated by the front motor.
• The engine and the generator stops.

Specifications

• Total gear ratio between the front motor and the differential: 9.383
  • Primary reduction ratio: 2.476 (52/21)
  • Secondary reduction ratio: 3.789 (72/19)

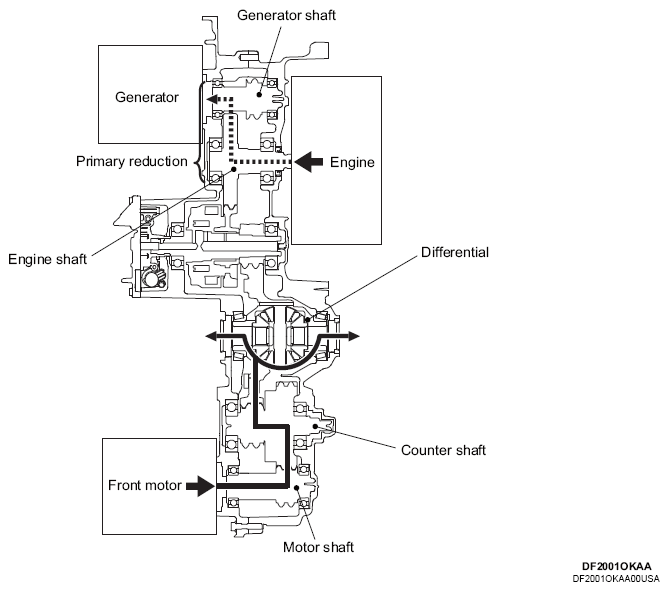

SERIES HYBRID MODE

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• The road wheels are driven by the front motor only. The engine drives the generator to generate electricity.
• The engine power is transmitted to the generator only (isolated from the drive train mechanism).
• The engine is started by the generator, which functions as a starter.

Specifications

• Total gear ratio between the generator and the engine: 2.476
  • Primary reduction ratio: 2.476 (52/21)

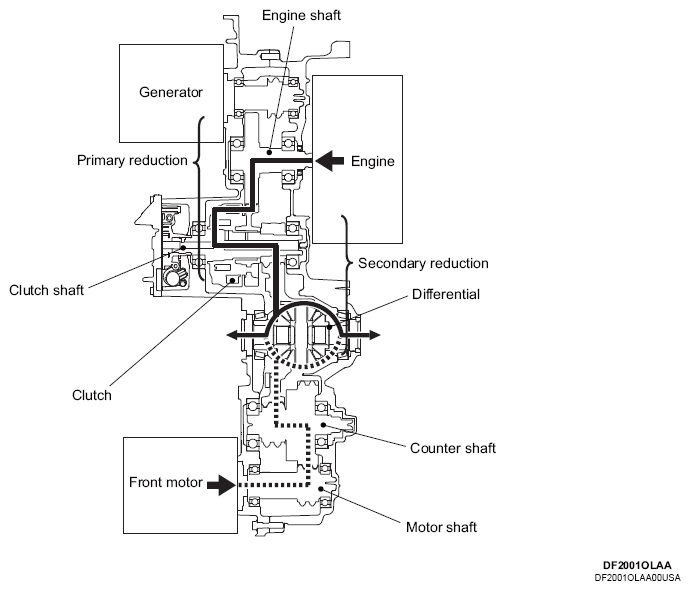

PARALLEL HYBRID MODE

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

• The clutch is engaged to transmit the engine power to the drive train mechanism.
• The speeds of all the gear shafts are synchronized with that of the engine.
• The front motor force is also transmitted to the drive train mechanism as power assistance.
• The clutch will be engaged when the vehicle speed reaches a certain speed.

Specifications

• Total gear ratio between the engine and the differential: 3.431
  • Primary reduction ratio: 0.905 (48/53)
  • Secondary reduction ratio: 3.789 (72/19)
