Removal And Installation

CAUTION:

When removing or installing the camshaft position sensor, be careful not to apply impact to the sensor .
Do not reuse the camshaft position sensor that has been dropped .

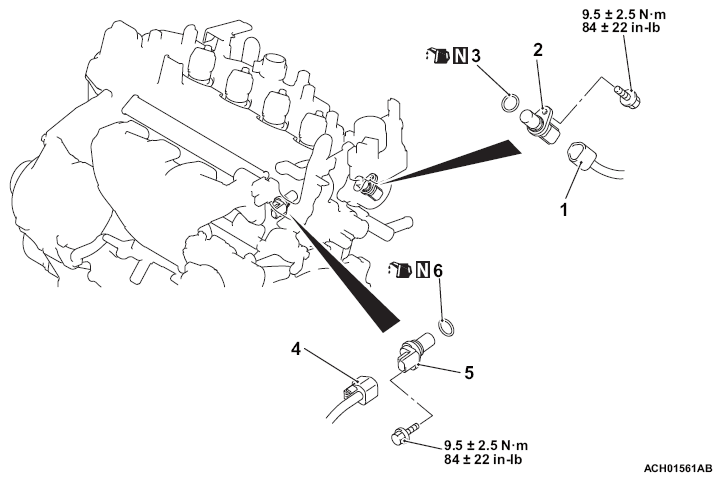

Fig 1: Removing/Installing Camshaft Position Sensor Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
1.	Camshaft position sensor, connector
2.	Camshaft position sensor, inlet
3.	O-ring
4.	Camshaft position sensor, connector
5.	Camshaft position sensor, exhaust
6.	O-ring
