Removal And Installation: Notes

CAUTION:

When removing or installing the crankshaft position sensor, be careful not to apply impact to the sensor .
Do not reuse the crankshaft position sensor that has been dropped .

Pre-removal and Post-installation Operation

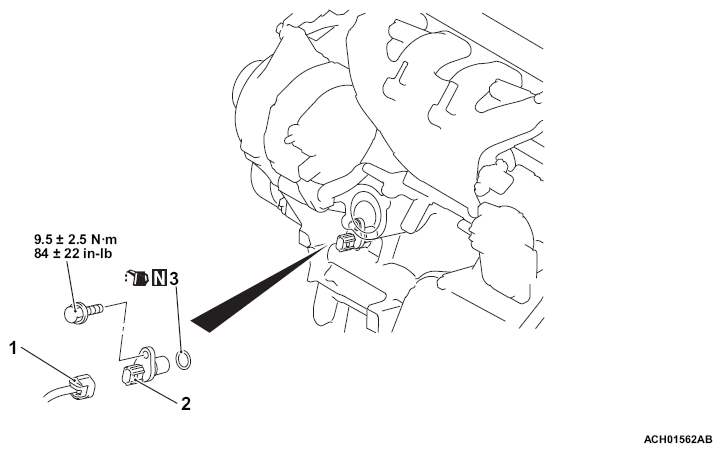

Fig 1: Removing/Installing Crankshaft Position Sensor Components Location With Torque Specification

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Removal steps
<<A>>	•	A/C compressor and clutch assembly (Refer to Compressor Assembly REMOVAL AND INSTALLATION ).
	1.	Crankshaft position sensor connector
	2.	Crankshaft position sensor
	3.	O-ring
