Intermittent Amplifier: Notes
- Remove amplifier from vehicle or position so jumper wires can be connected to terminals. Use care to prevent improper connections since amplifier can be ruined.

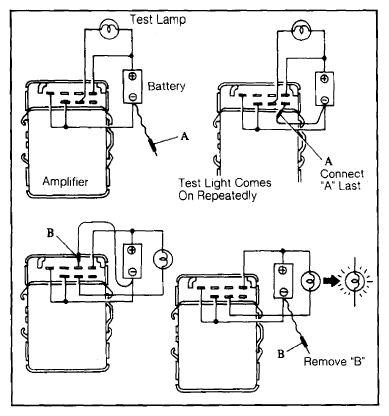

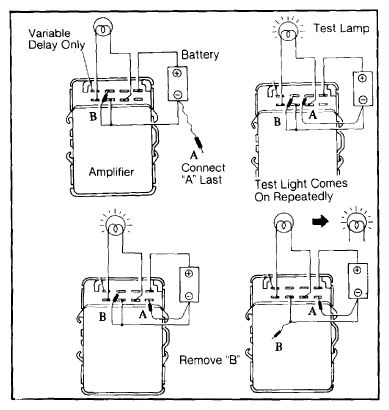

- Connect test lamp and battery as shown in Figure, Figure, Figure & Figure. Correct test procedures must be used for the vehicle being tested.
