Sentra Intermittent

Connect test leads to amplifier. See Fig 1. Test lamp must come on when negative lead wire "A" is connected. Momentarily connect lead wire "A" to top center terminal and then disconnect. Test lamp must come on in a few seconds. Replace amplifier if it fails any test.

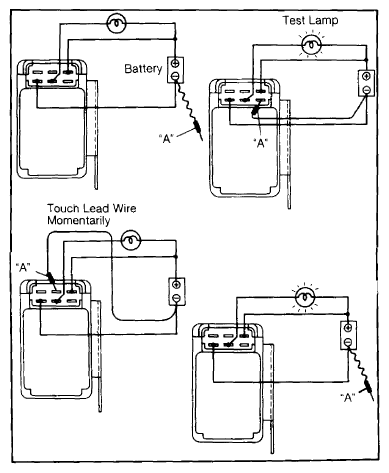

Fig 1: Test Connections for Sentra Intermittent Amplifier
G09330333Courtesy of NISSAN NORTH AMERICA, INC.

Sentra variable amplifier uses a different amplifier.
