Air Regulator

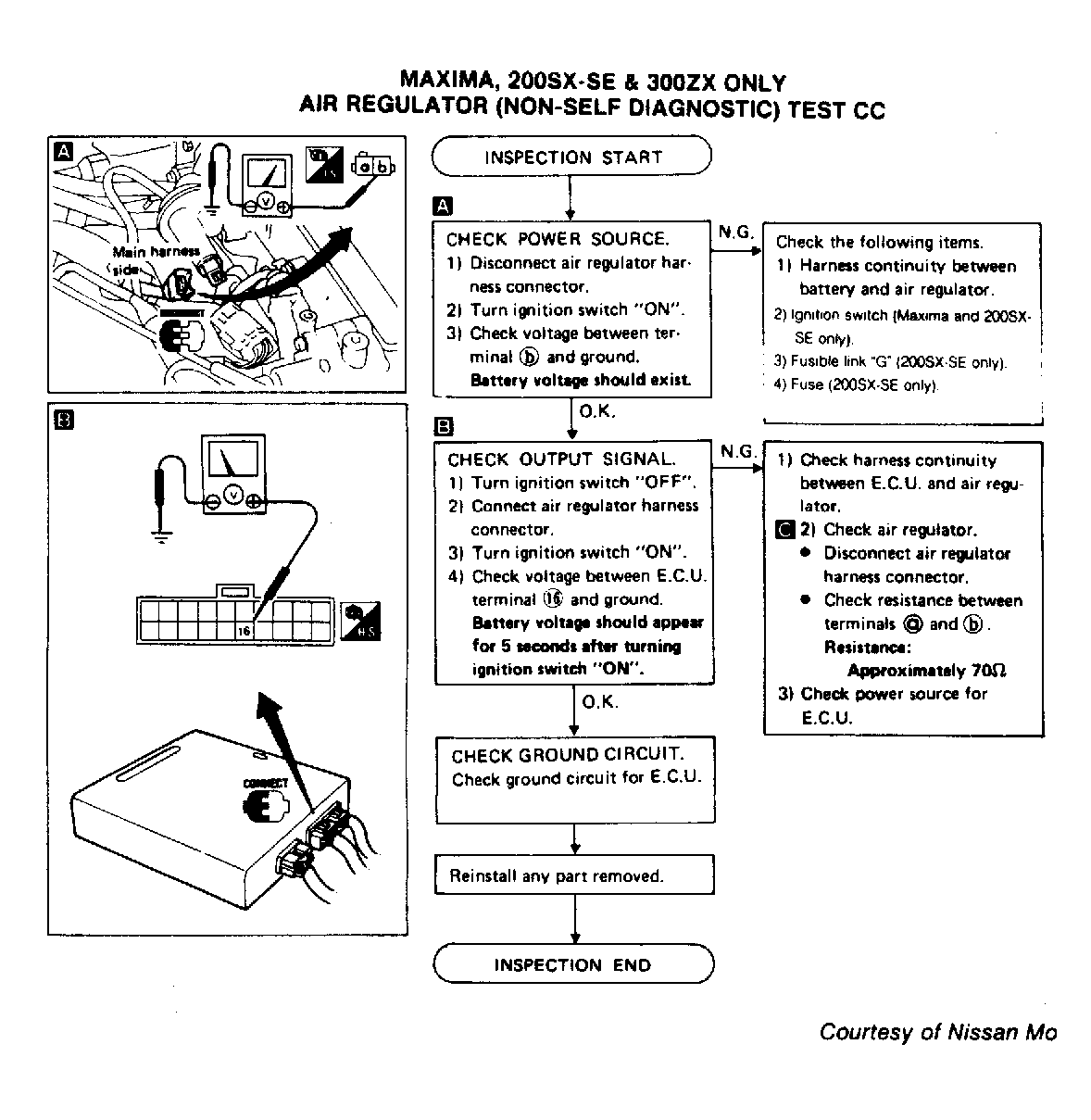

Fig 1: Test CC, Maxima, 200SX-SE & 300ZX
G61779

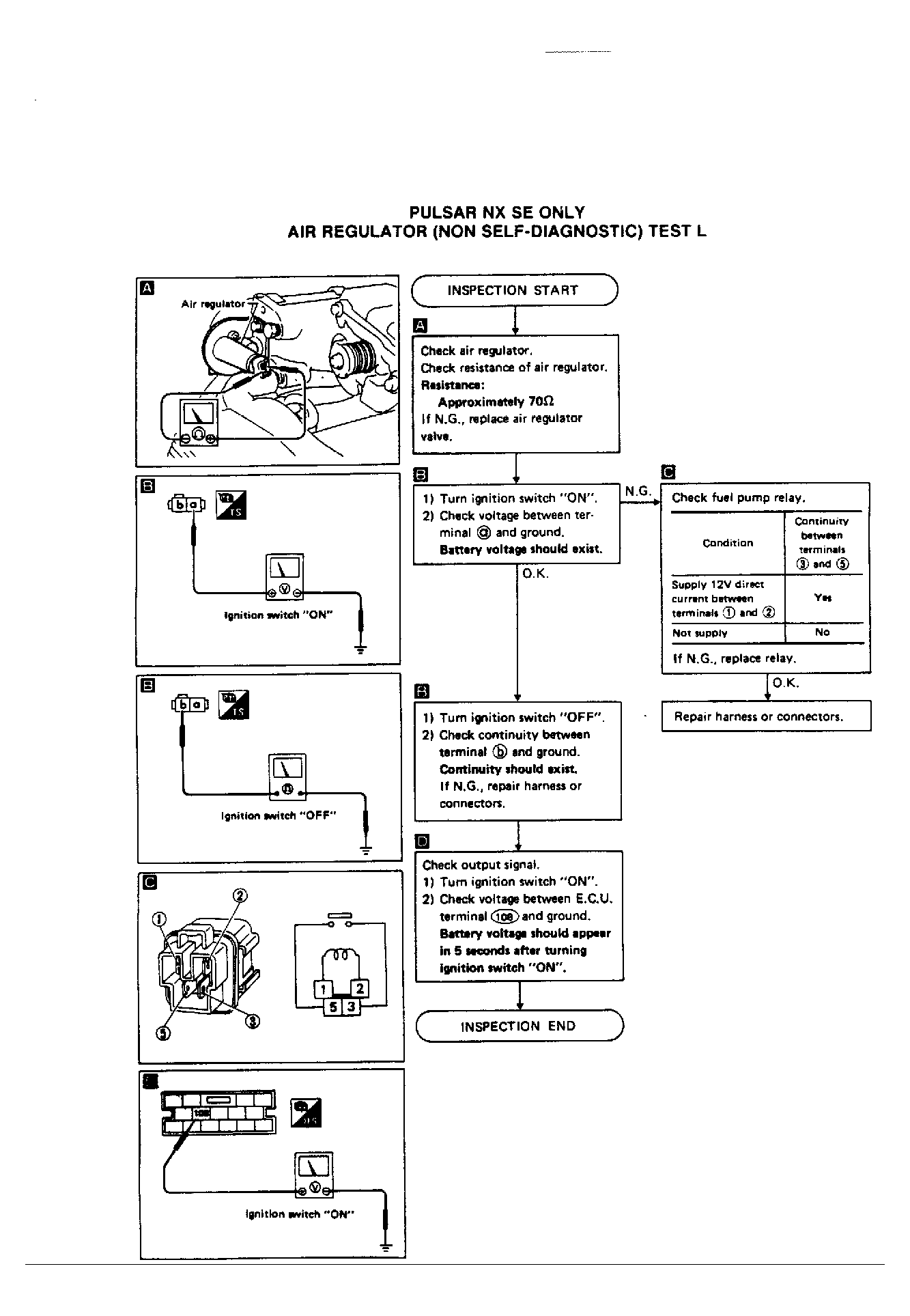

Fig 2: Test L, Pulsar NX SE
G61715

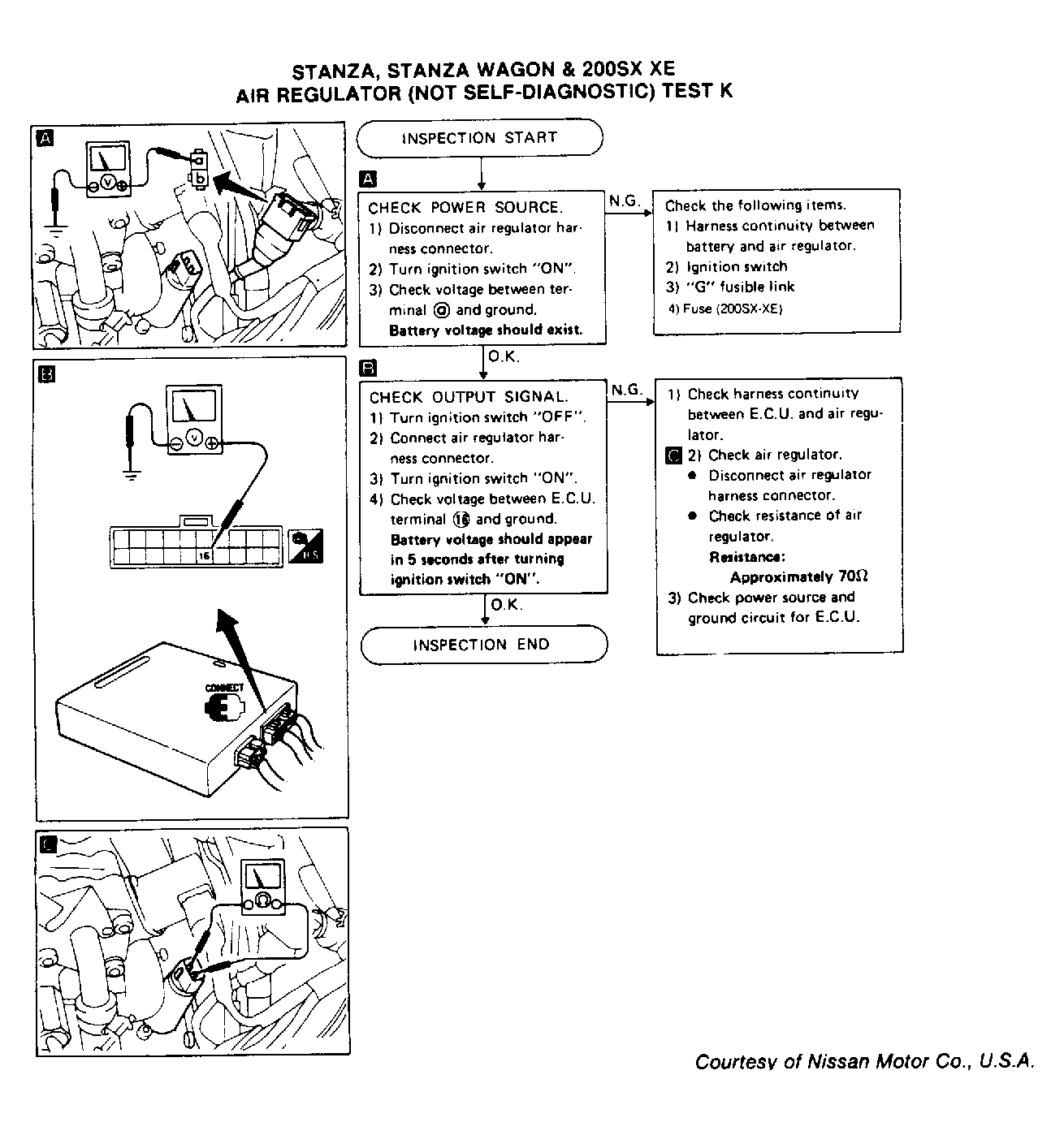

Fig 3: Test K, Stanza, Stanza Wagon & 200SX XE
G61712
