Neutral/Clutch Inhibitor Switch
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Neutral/Clutch Inhibitor Switch

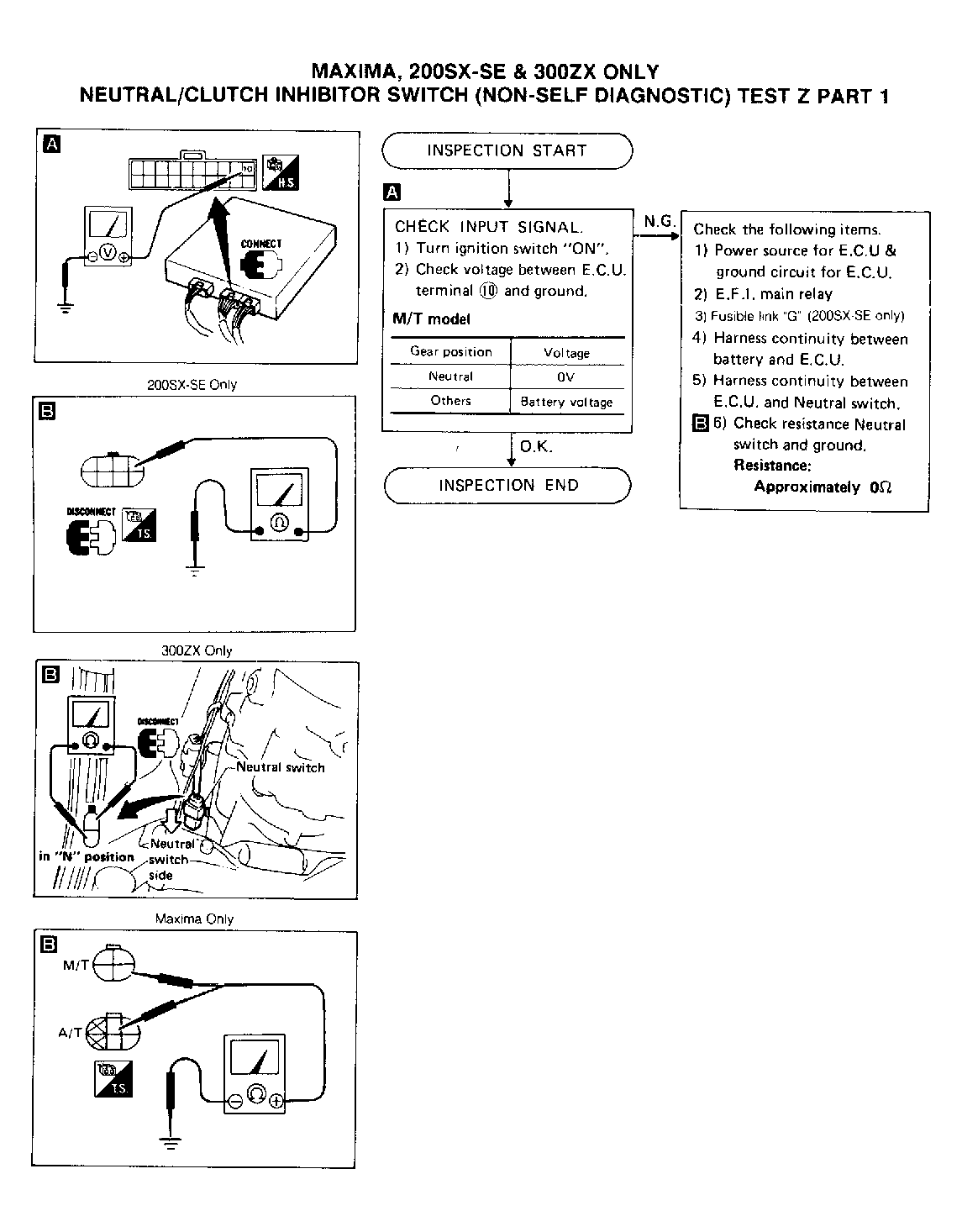

Fig 1: Test Z, Maxima, 200SX-SE & 300ZX

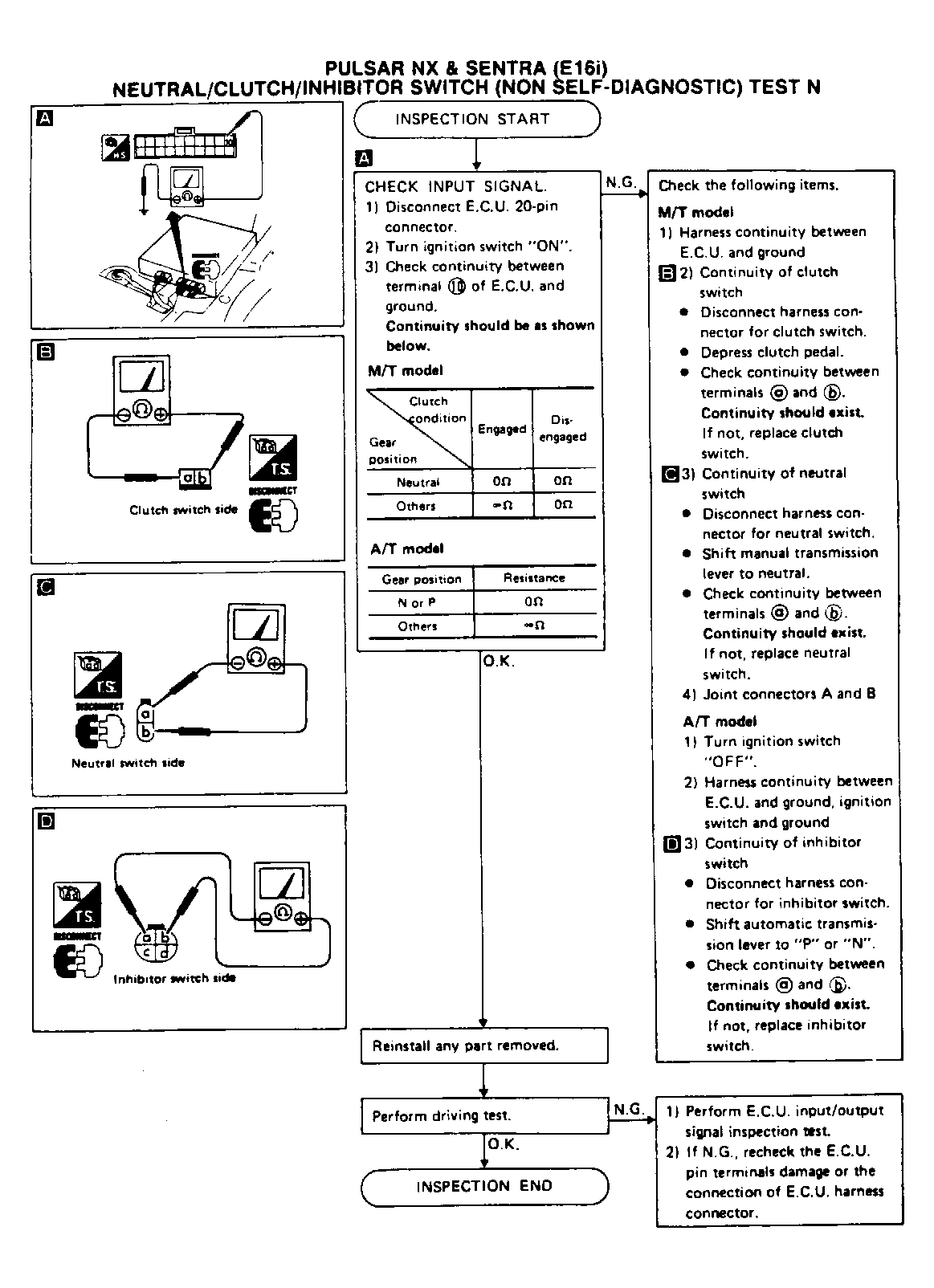

Fig 2: Test N, Pulsar NX & Sentra (E16i)
