Resistor (Maxima)

Disconnect resistor harness connector, see Fig 1 . Check resistance between terminal A and B, see Fig 2 . Resistance should be approximately 2.2 Ohms. If N.G., replace resistor.

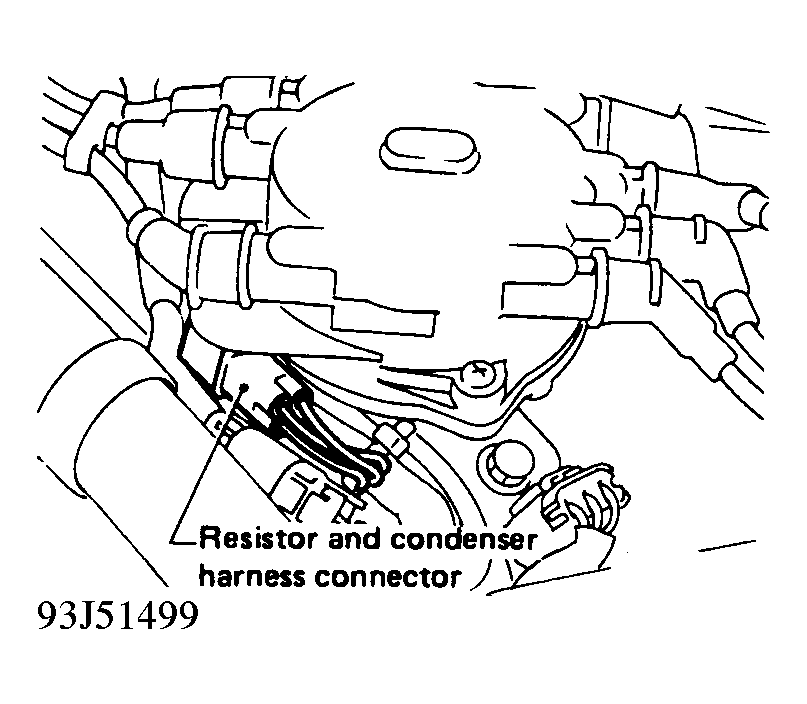

Fig 1: Resistor Harness Connector

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Resistor

Courtesy of NISSAN MOTOR CO., U.S.A.
