Radiator (Cooling) Fan Control Chart

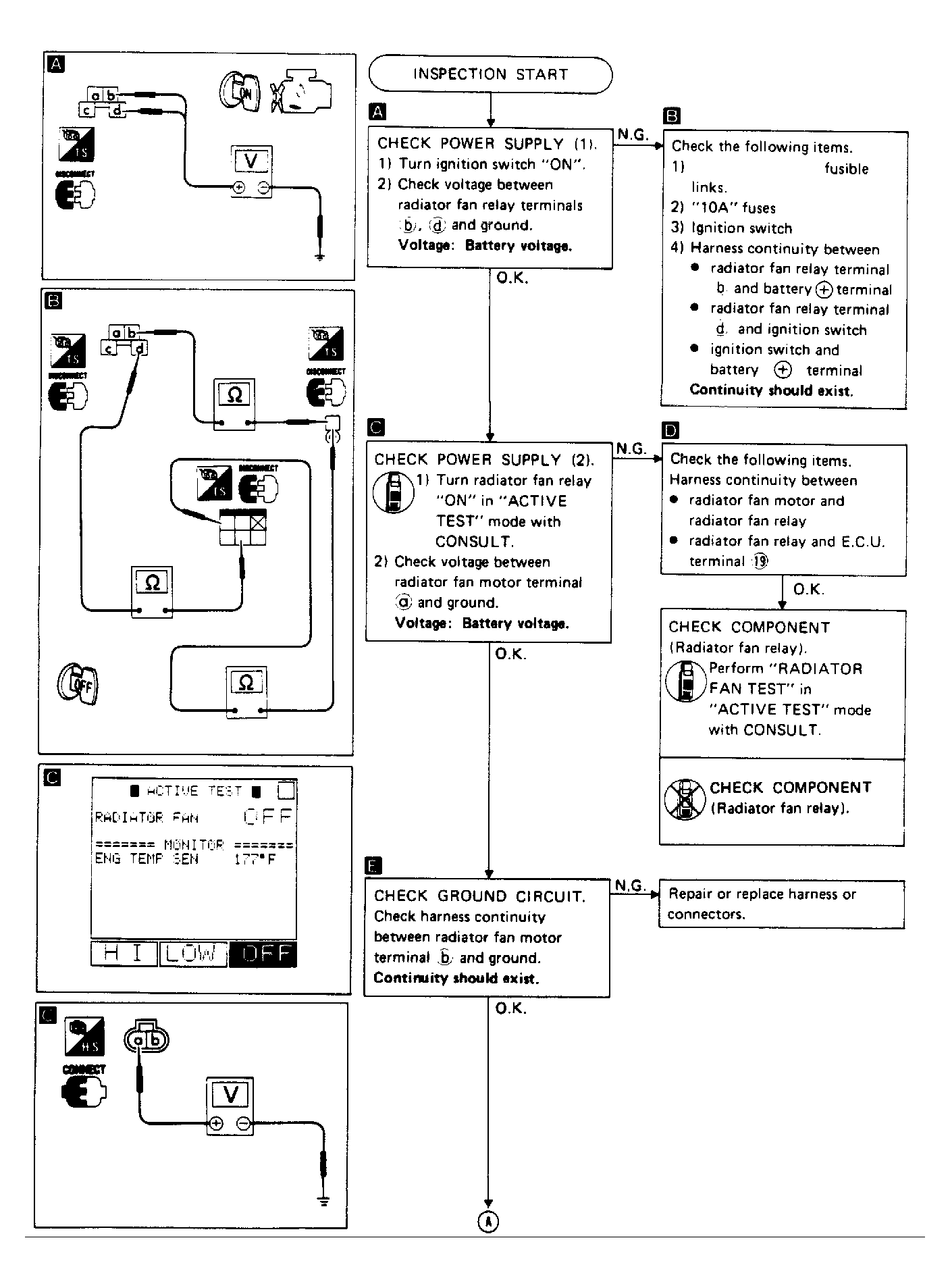

Fig 1: Radiator (Cooling) Fan Control Diagnostic Chart (1 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

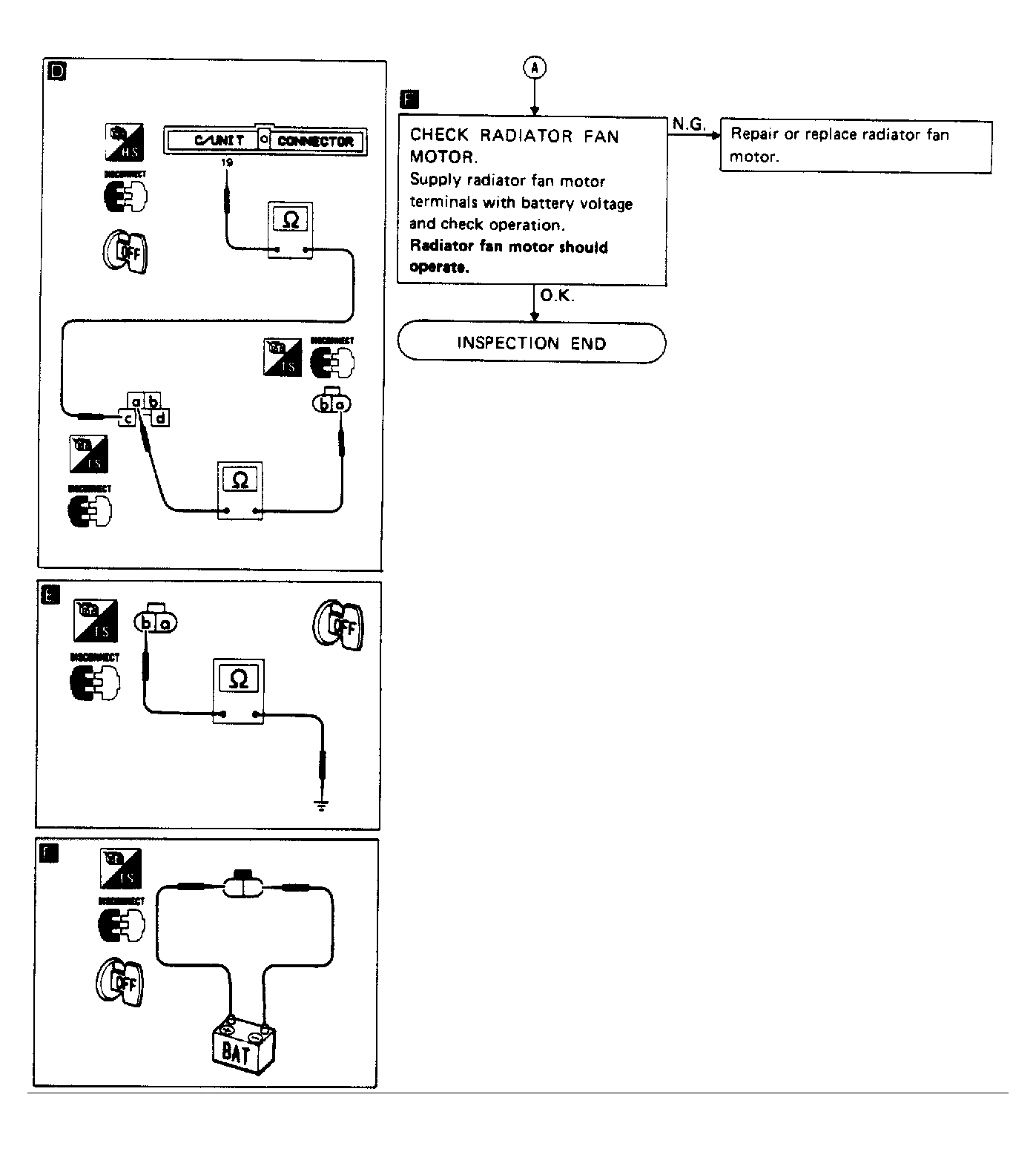

Fig 2: Radiator (Cooling) Fan Control Diagnostic Chart (2 of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
