Auxiliary Air Control Chart

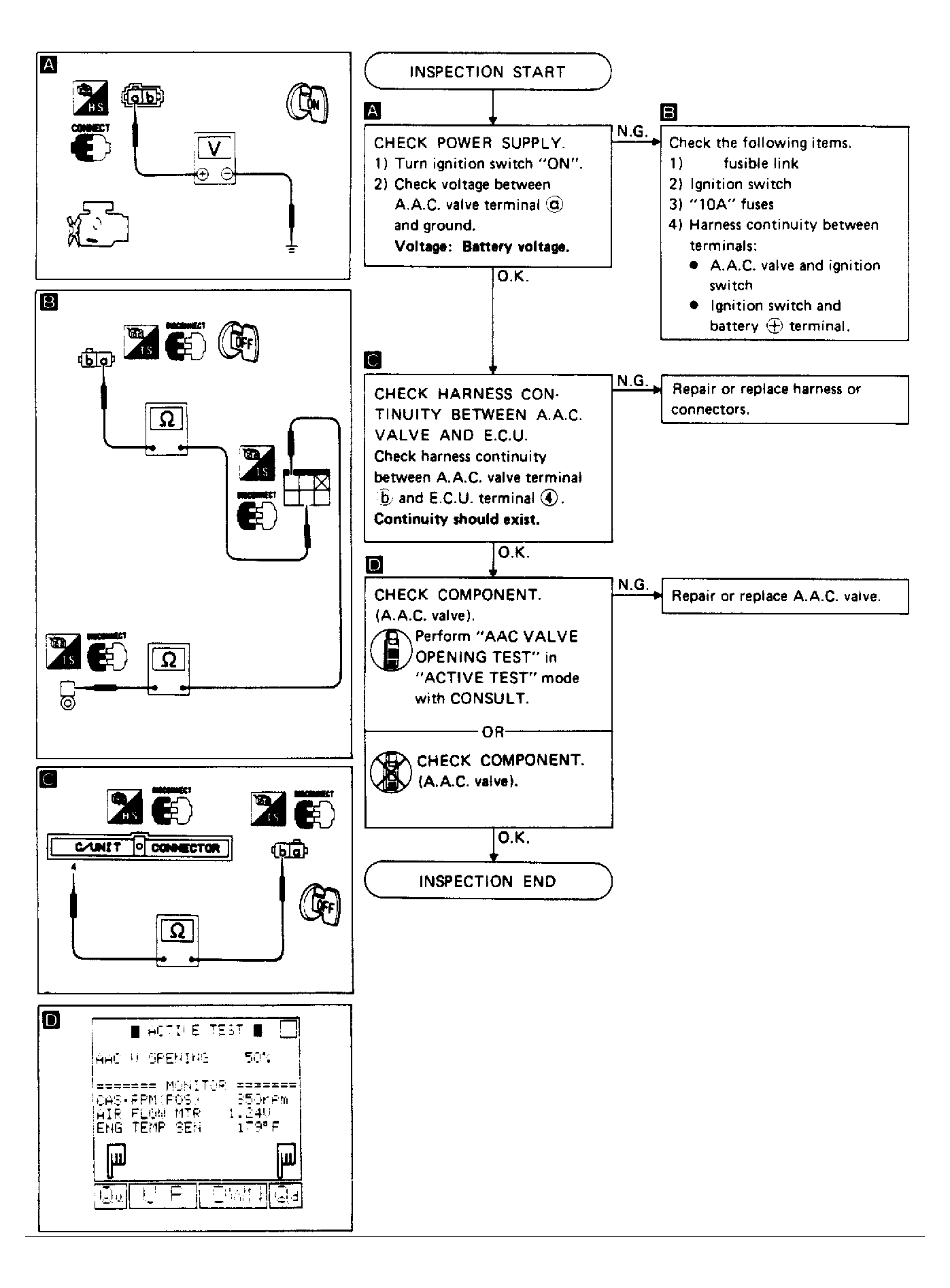

Fig 1: Auxiliary Air Control (AAC) Diagnostic Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
