DRIVEABILITY/System Inspection Charts

Fig 1: Driveability Inspection Tables (1 of 2)

G94939

Fig 2: Driveability Inspection Tables (2 of 2)

G94940

Fig 3: Systems Inspection Tables & Test Letter Reference Charts

G94941

Fig 4: ECU Input/Output Voltage Signal Insp. Table (1 of 4)

G94946

Fig 5: ECU Input/Output Voltage Signal Insp. Table (2 of 4)

G94947

Fig 6: ECU Input/Output Voltage Signal Insp. Table (3 of 4)

G94948

Fig 7: ECU Input/Output Voltage Signal Insp. Table (4 of 4)

G94949

Fig 8: Crank Angle Sensor (Code 11) Test A

G94960

Fig 9: Mass Airflow Meter (Code 12) Test B

G94964

Fig 10: Cylinder Head Temperature Sensor (Code 13) Test C

G94966

Fig 11: Vehicle Speed Sensor (Code 14) Test D

G94968

Fig 12: Ignition Signal (Code 21) Test E

G94973

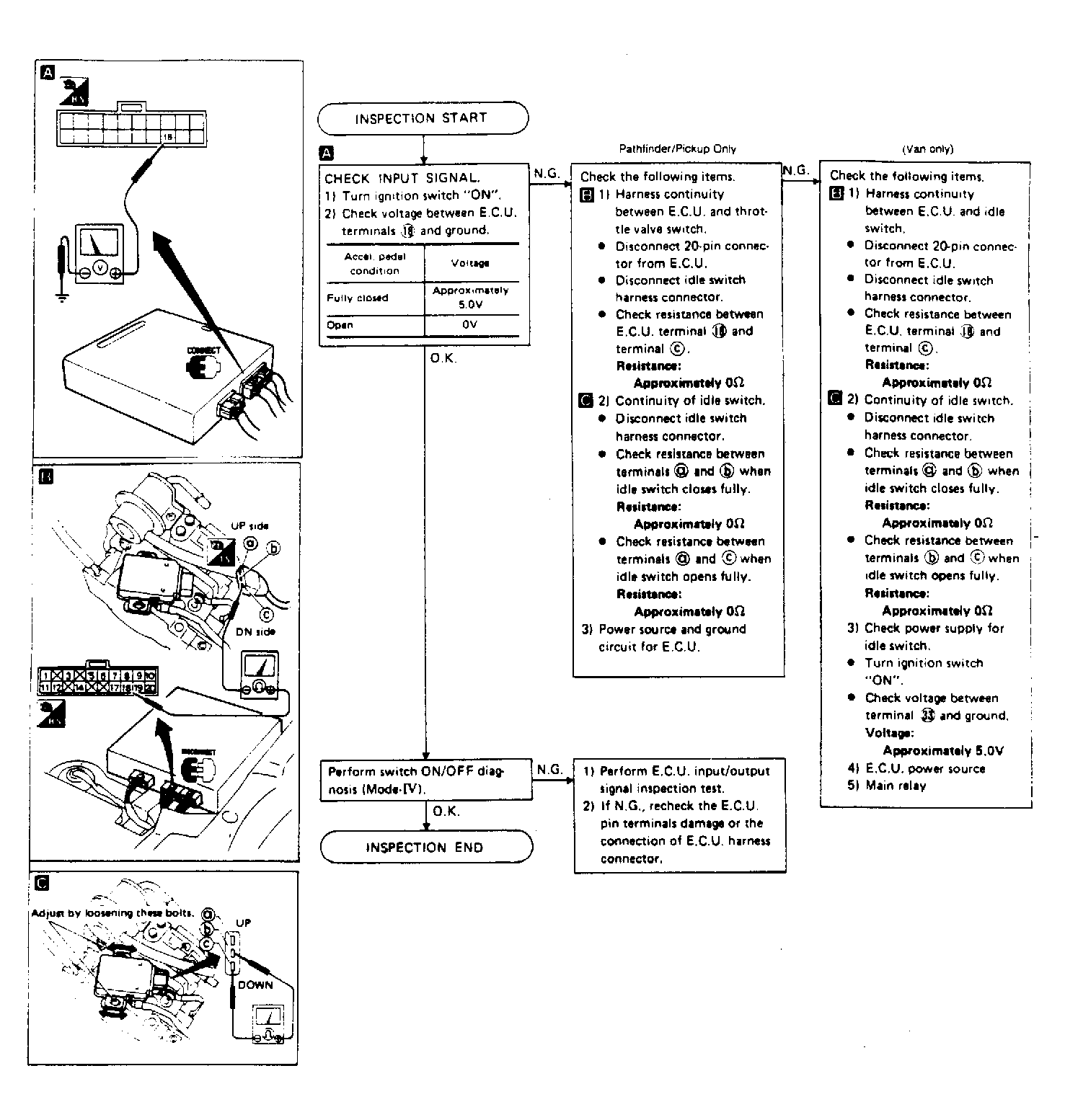

Fig 13: Idle Switch (Switch On/Off Diagnosis) Test G

G94975

Fig 14: Engine Control Unit Check (ECU) (Code 31) Test H

G94981

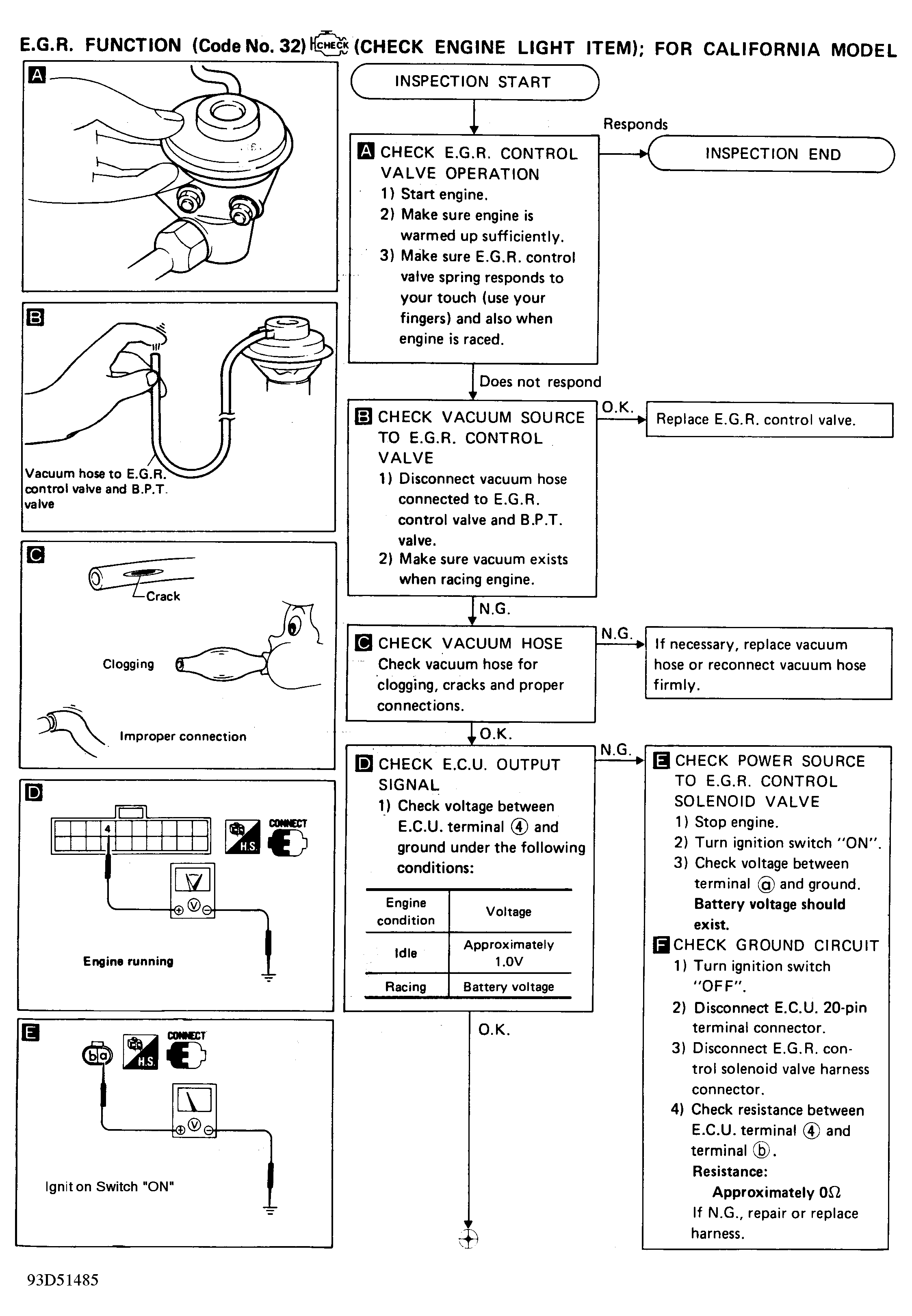

Fig 15: EGR Function (CALIF) (Code 32) Test J (1 of 3)

G93D51485

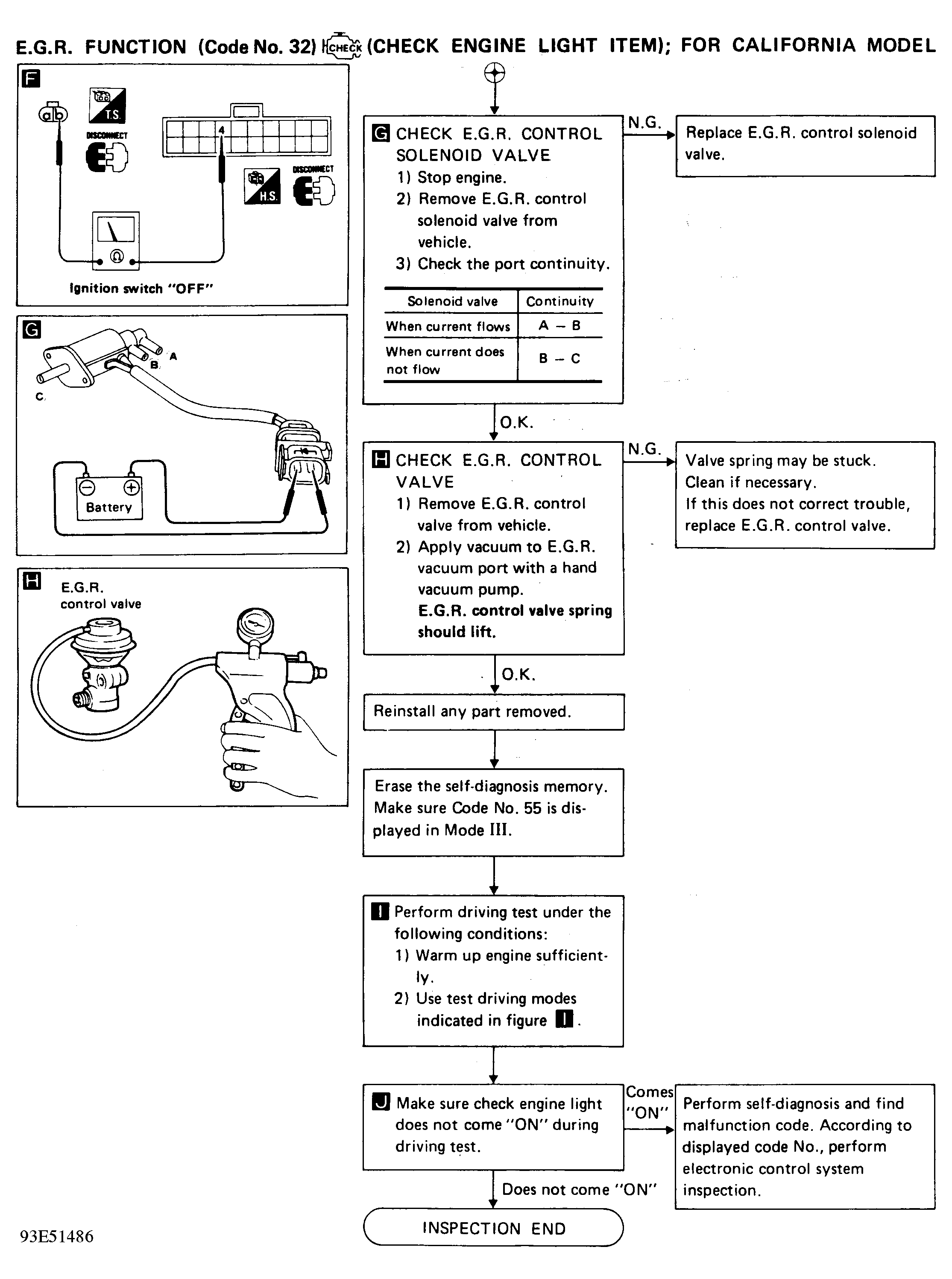

Fig 16: EGR Function (CALIF) (Code 32) Test J (2 of 3)

G93E51486

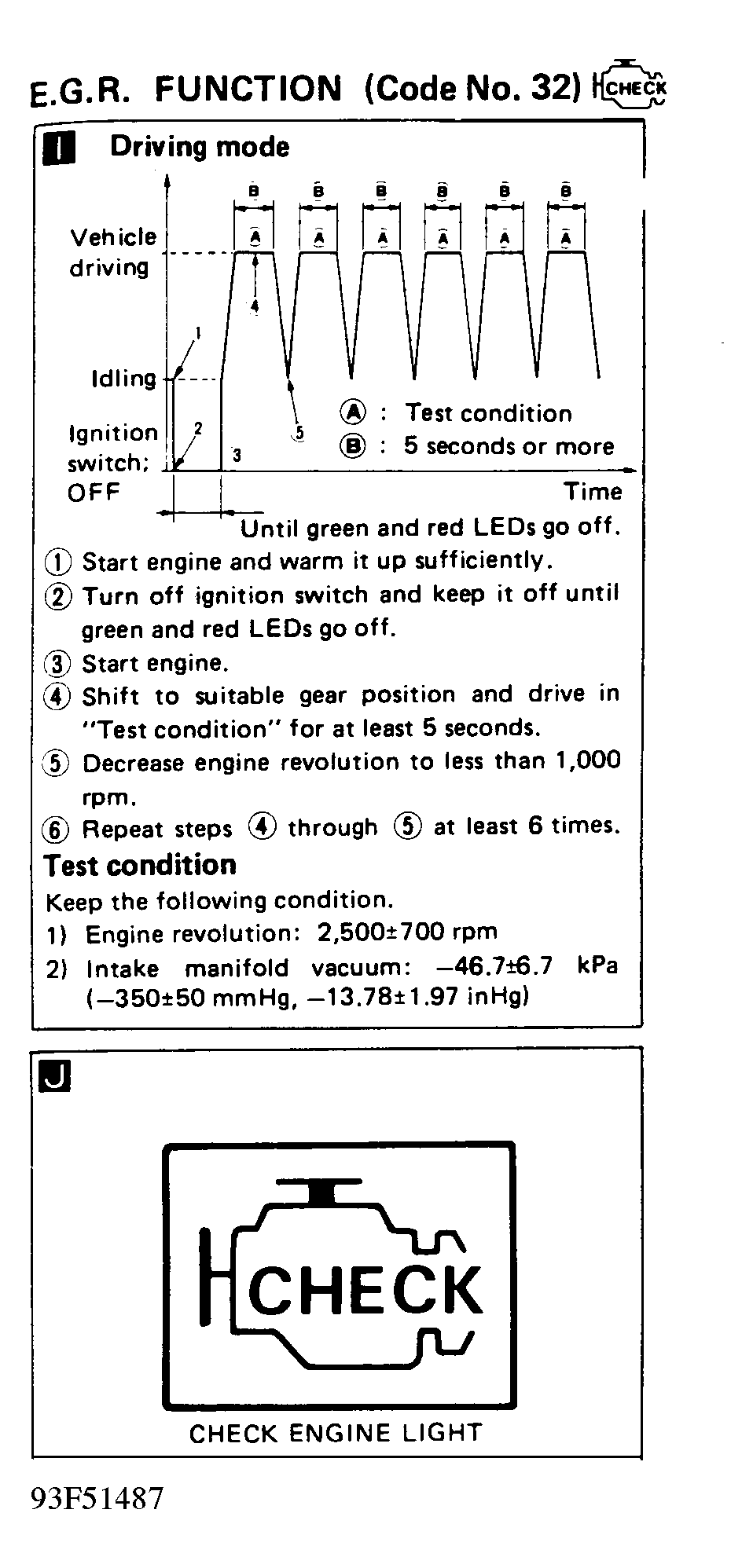

Fig 17: EGR Function (CALIF) (Code 32) Test J (3 of 3)

G93F51487

Fig 18: Exhaust Gas Temperature Sensor (Code 35) Test L

G94988

Fig 19: Throttle Position Sensor (Code 43) Test O (1 of 2)

G94991

Fig 20: Throttle Position Sensor (Code 43) Test O (2 of 2)

G94992

Fig 21: Injector Leak Check (Code 45) Test P

G94993

Fig 22: Injector Malfunction (Code 51) Test Q

G94996

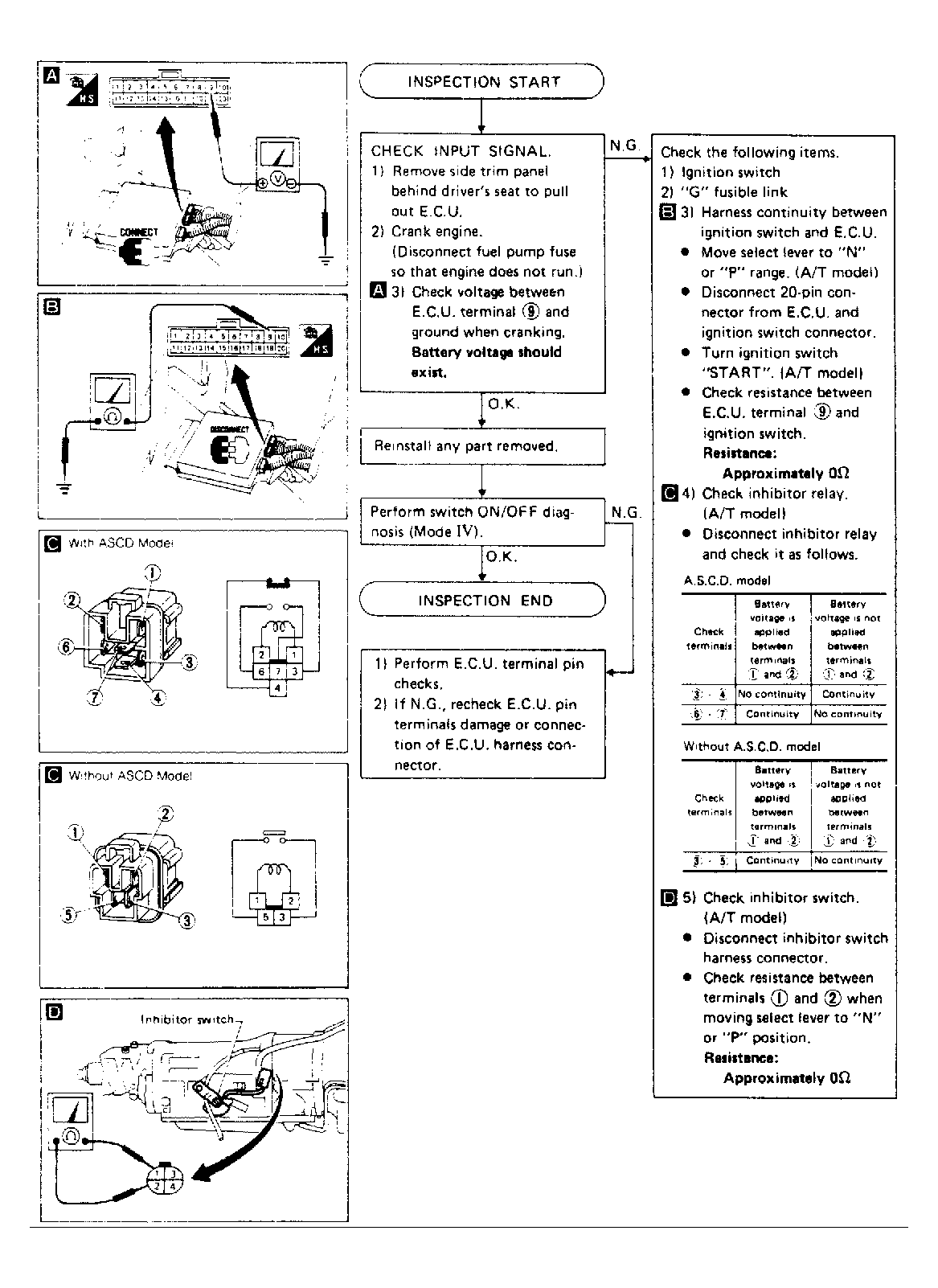

Fig 23: Start Signal (Switch On/Off Diagnosis) Test R

G95002

Fig 24: Power Source & Ground Circuit for ECU (Non Self-Diagnostic Item) Test V

G95008

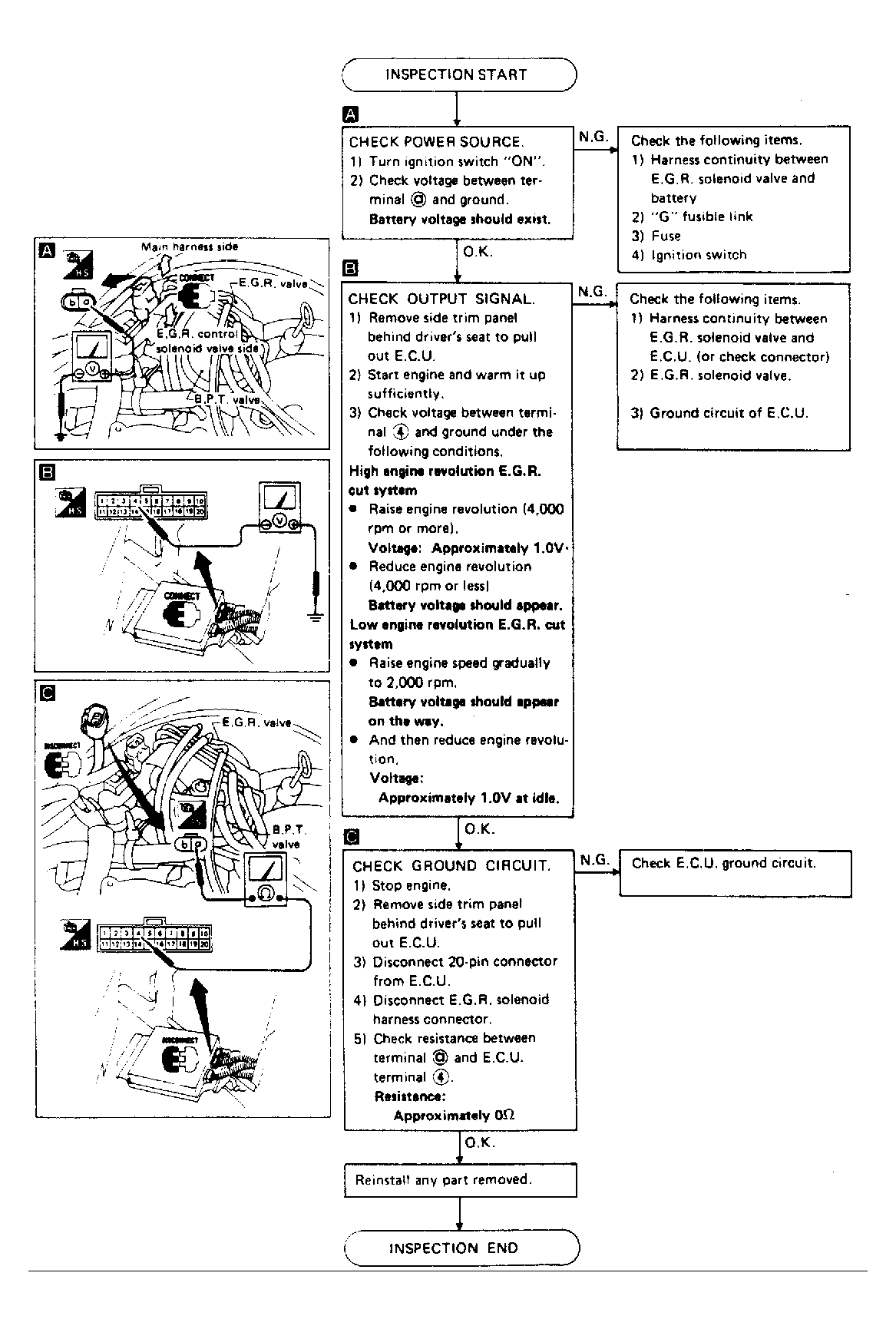

Fig 25: EGR Control (Non Self-Diagnostic Item) Test W

G95013

Fig 26: Idle-Up Control (Non Self-Diagnostic Item) Test X

G95014

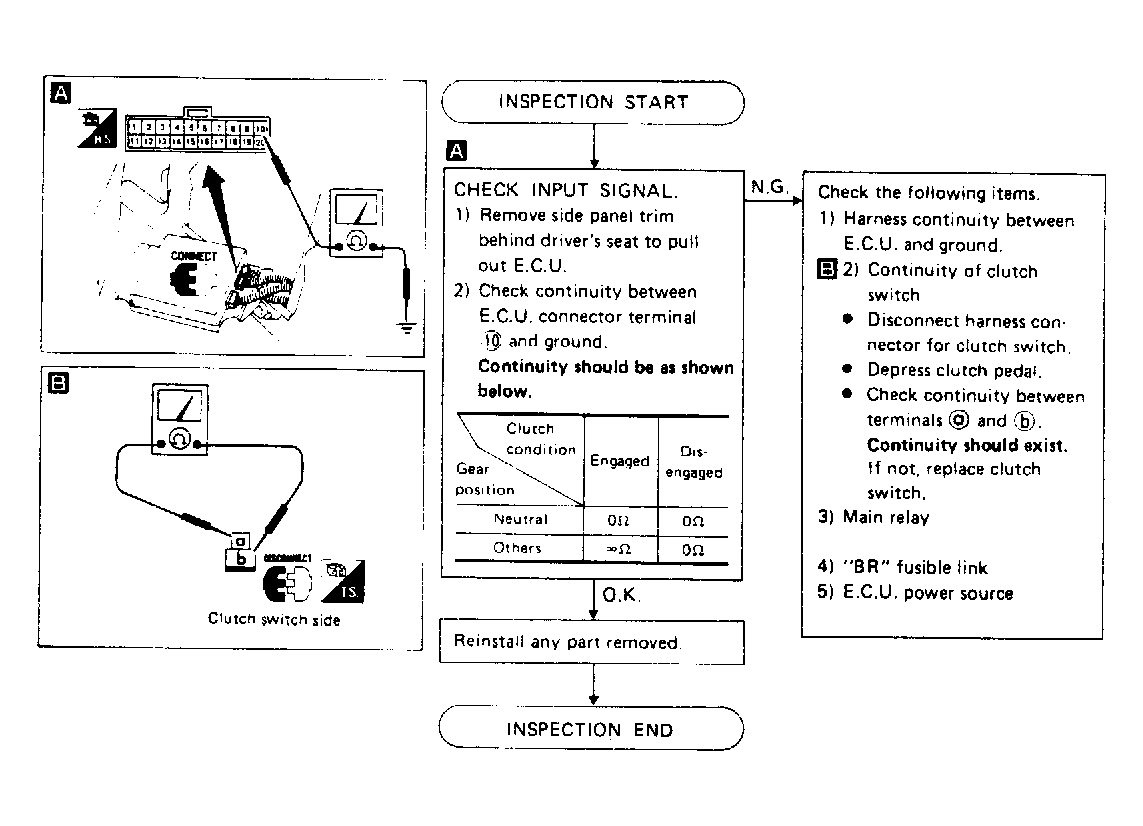

Fig 27: Clutch Switch (Non Self-Diagnostic Items) Test Z

G95023

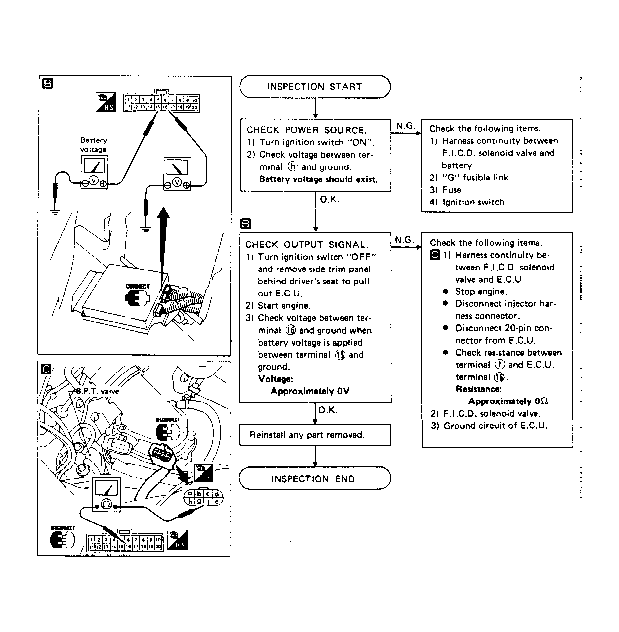

Fig 28: FICD (Non Self-Diagnostic Item) Test AA

G95024

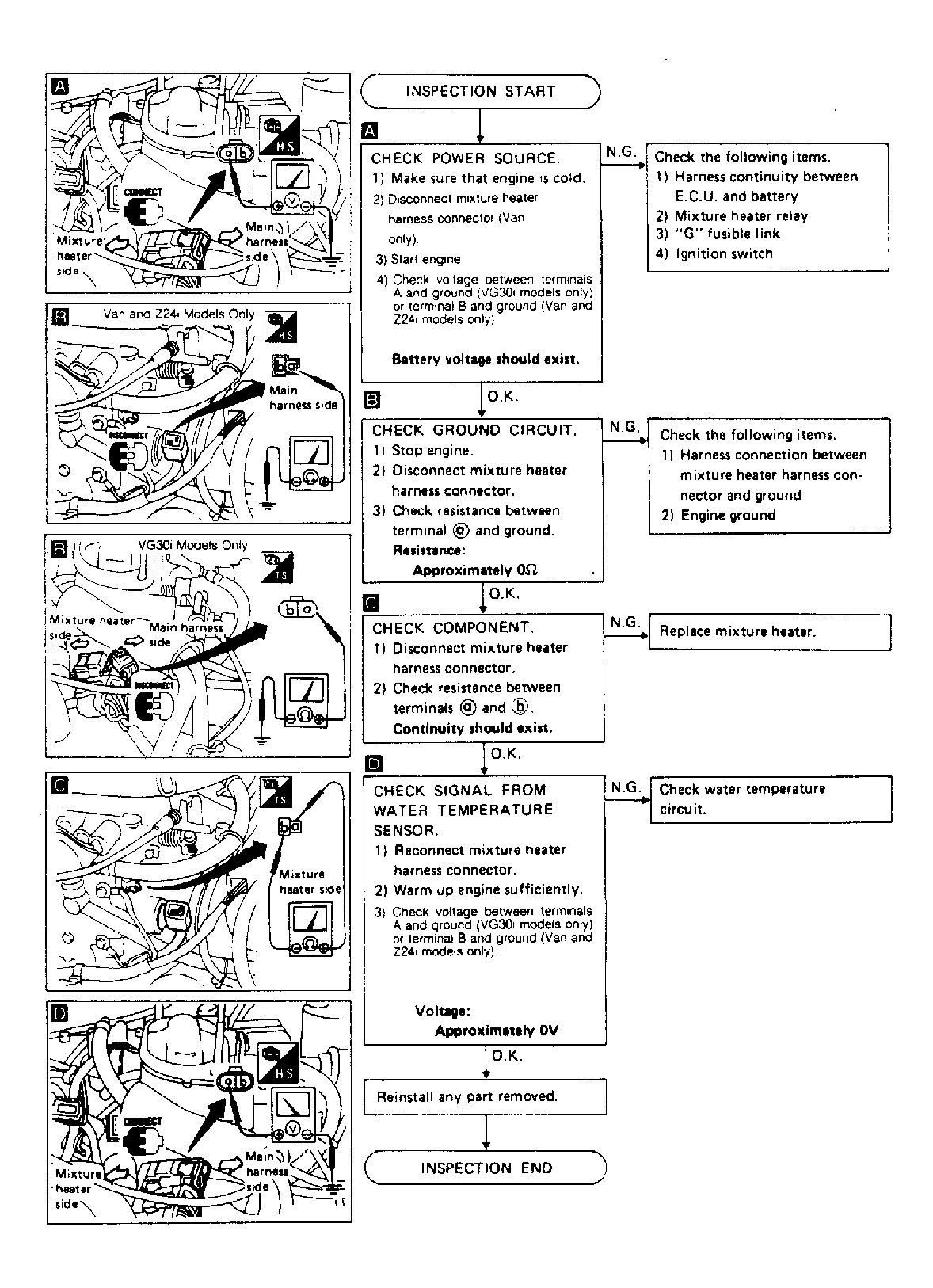

Fig 29: Mixture Heater (Non Self-Diagnostic Item Test HH

G95034

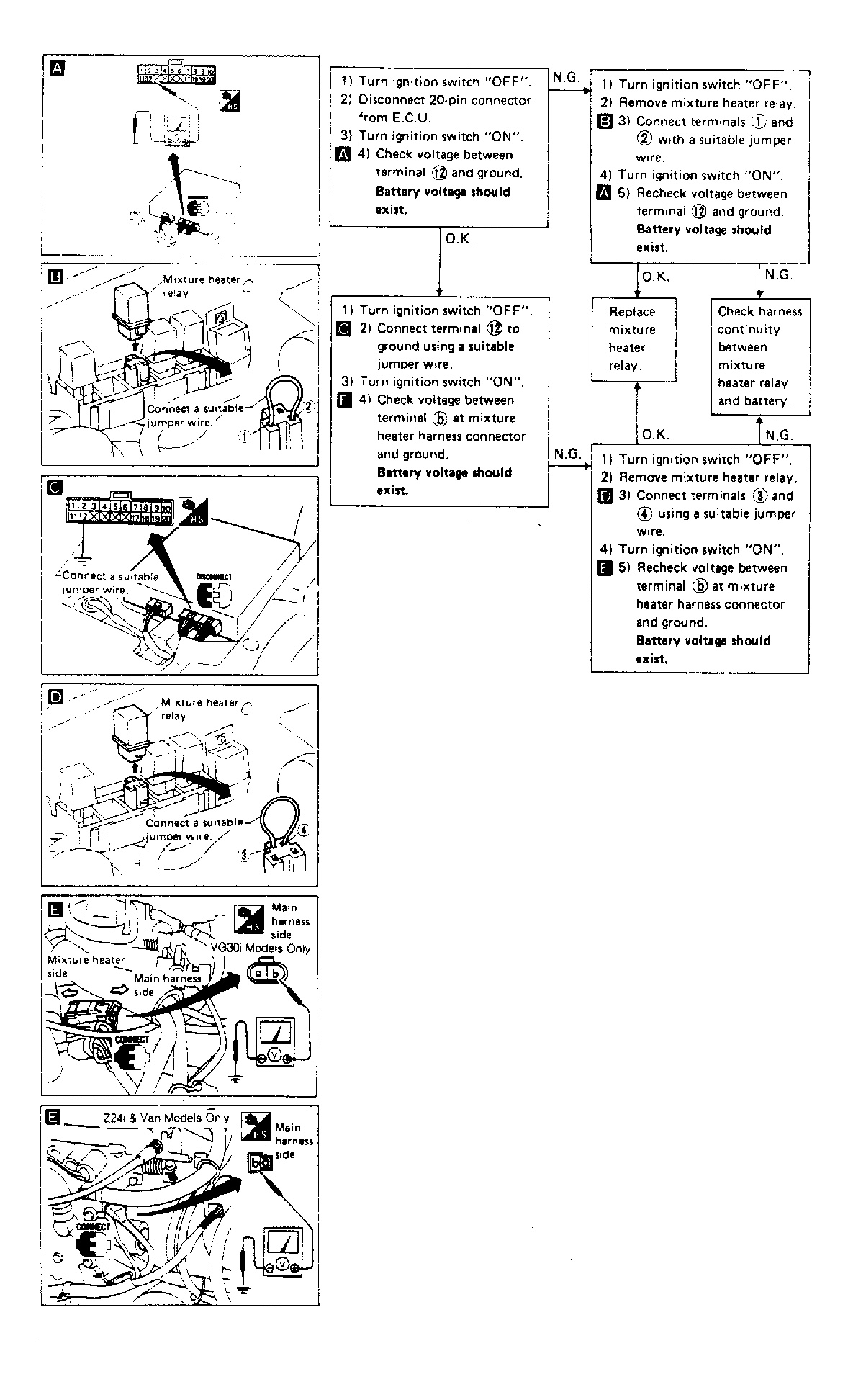

Fig 30: Mixture Heater Relay (Non Self-Diagnostic Item) Test II

G95036

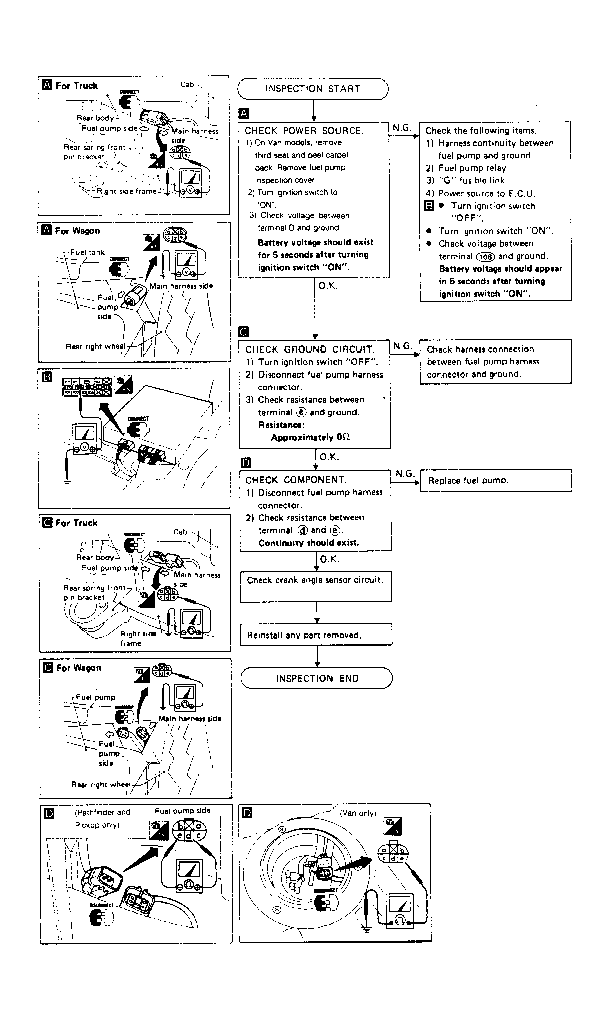

Fig 31: Fuel Pump (Non-Diagnostic Item) Test JJ

G95038
