Valve Timing Control System NX 1.6L/SENTRA/300ZX/Maxima VE30: Notes

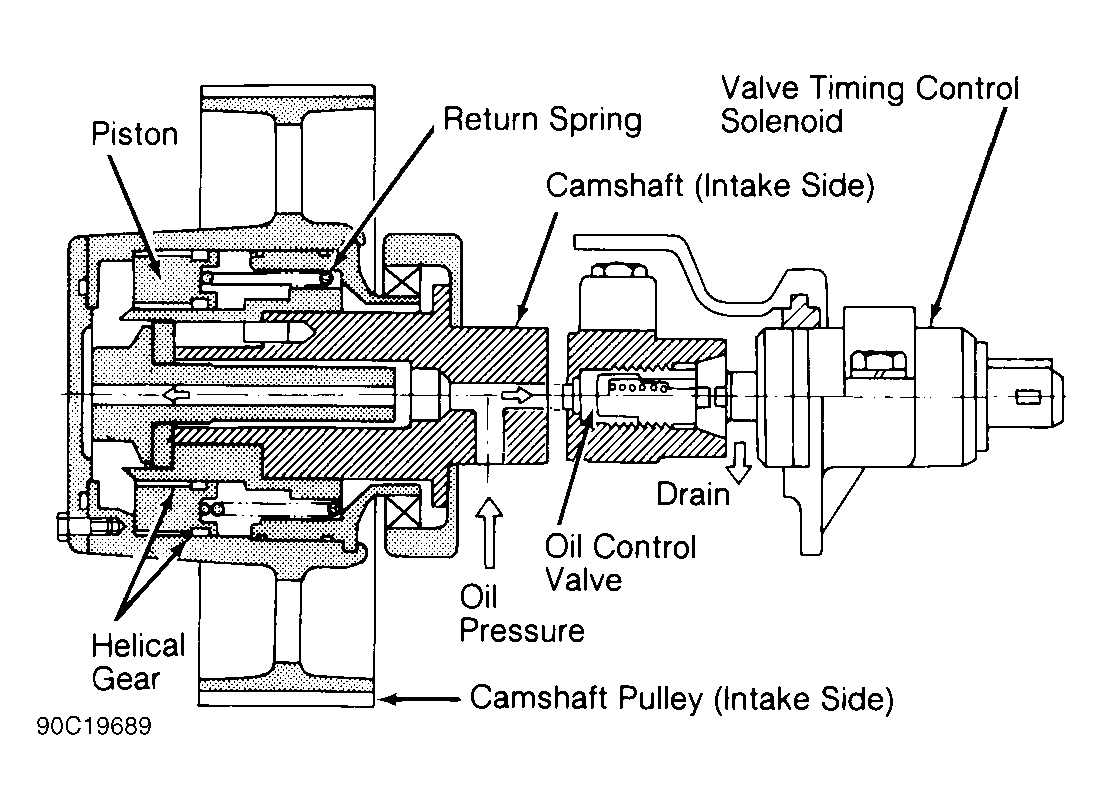

Valve timing control system consists of intake camshaft pulley and advance/retard mechanism, valve timing control solenoid and oil control valve. See Figure.

Valve timing control is used to increase engine performance by advancing or retarding the intake camshaft. Intake valve opening and closing points are controlled by the ECU according to engine operating conditions. This affects the overall torque curve by allowing more favorable torque applications at low-to-medium speeds.

Inputs from the coolant temperature sensor, throttle position sensor, mass airflow sensor, engine RPM and gear position are used by ECU to determine operation.
