Power Window Motor

For power window motor test procedure, see Fig 1 .

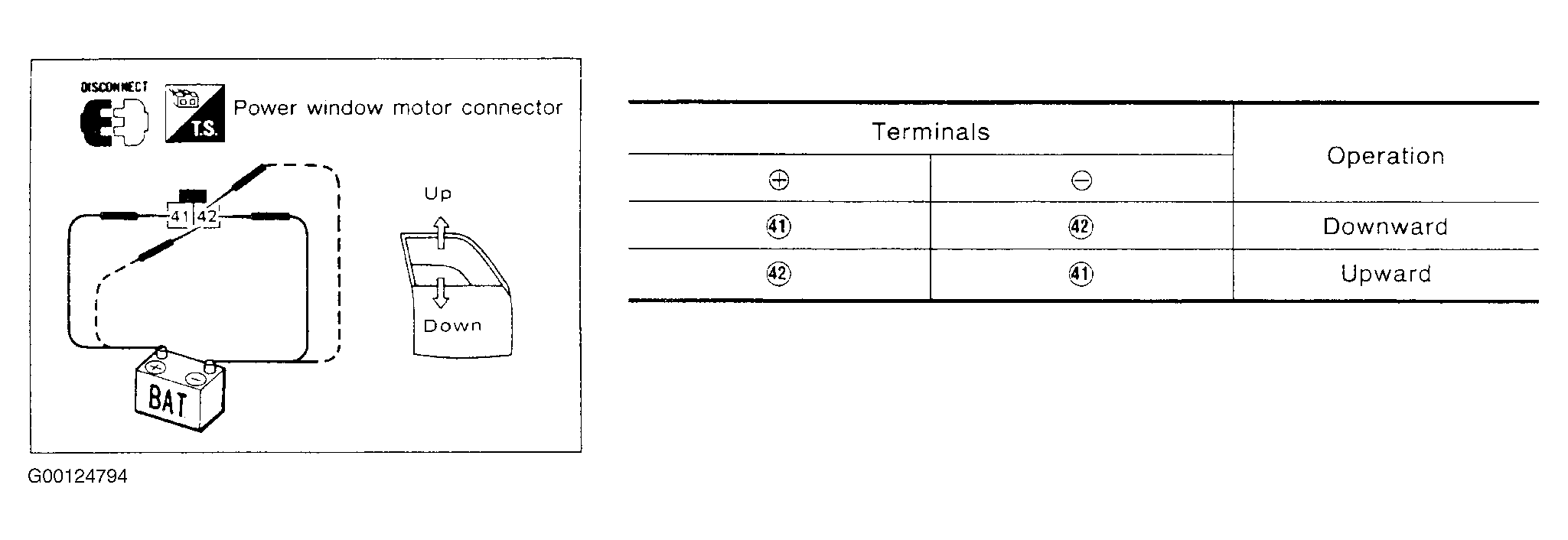

Fig 1: Testing Power Window Motor
G00124794Courtesy of NISSAN MOTOR CO., U.S.A.
