Low Fuel Warning Light Sensor

Remove fuel gauge sending unit. Connect 12-volt battery across terminals "E" and "S" of fuel gauge sending unit connector, with a 3.4-watt light bulb connected in series. See Fig 1 . Allow time for light bulb to come on. With sending unit float submerged in gasoline, light should not come on.

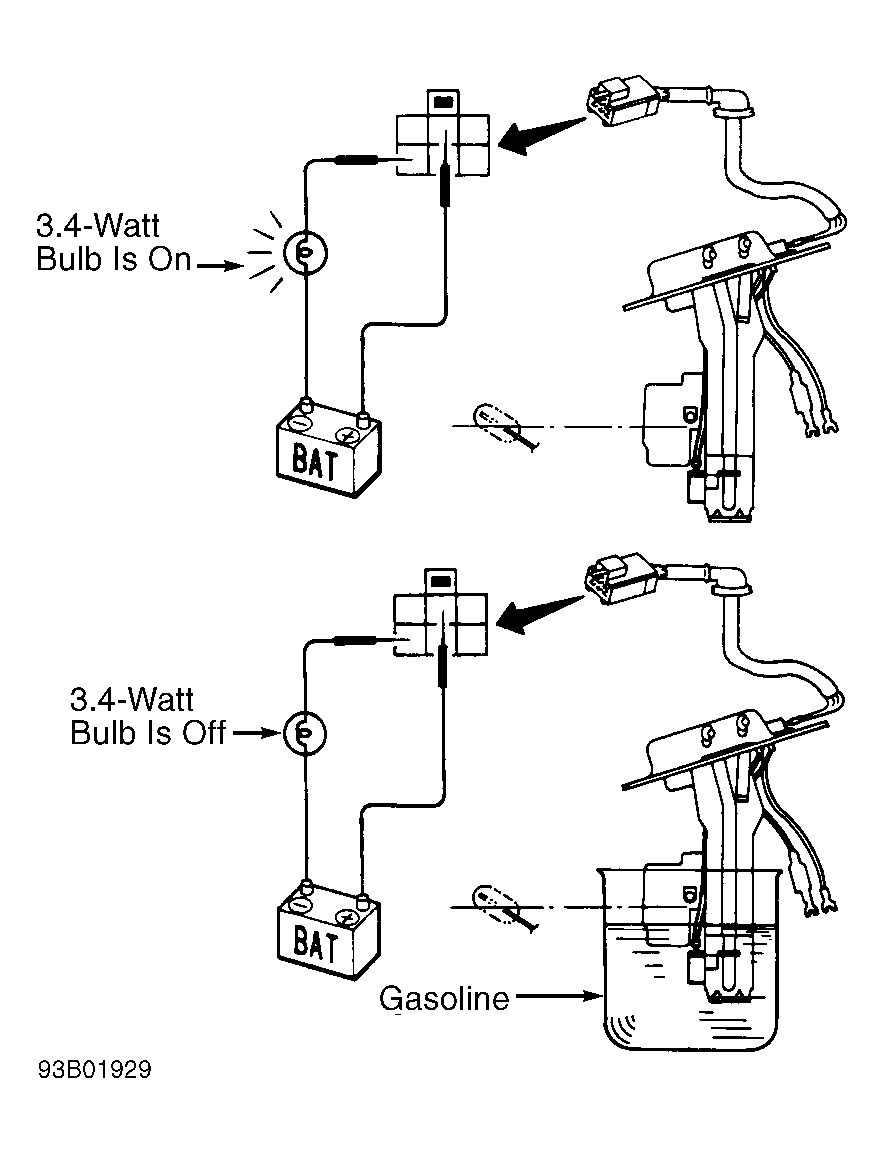

Fig 1: Testing Low Fuel Warning Light Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.
