Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

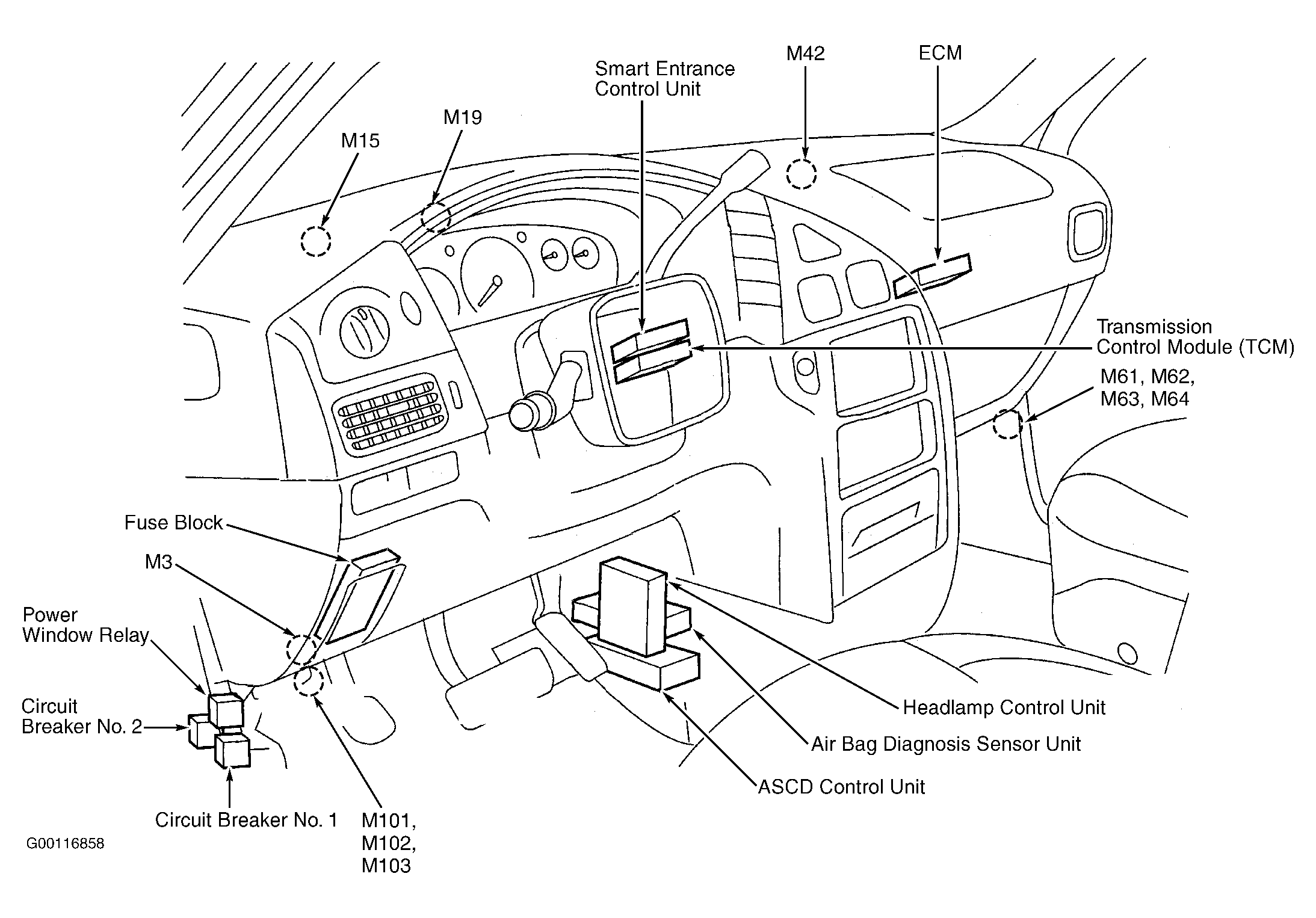

Circuit Breaker No. 1 Behind left kick panel. See Figure .
Circuit Breaker No. 2 Behind left kick panel. See Figure .

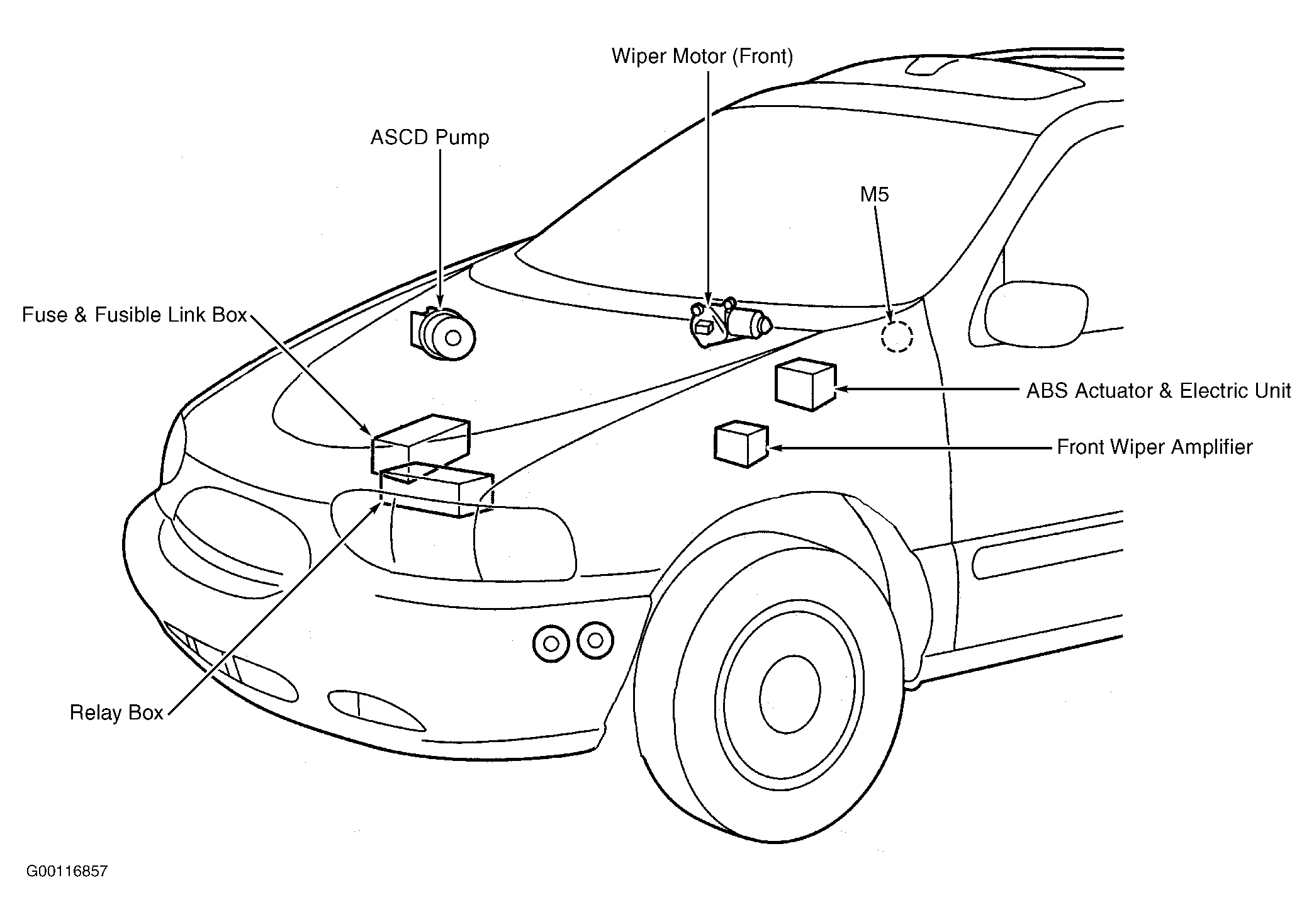

Fuse & Fusible Link Box On left front of engine compartment. See Figure .
Fuse Block Behind dash, left of steering column. See Figure .
Relay Box At left front corner of engine compartment. See Figure .
