Data Monitor Procedure

  1. Turn ignition switch OFF.

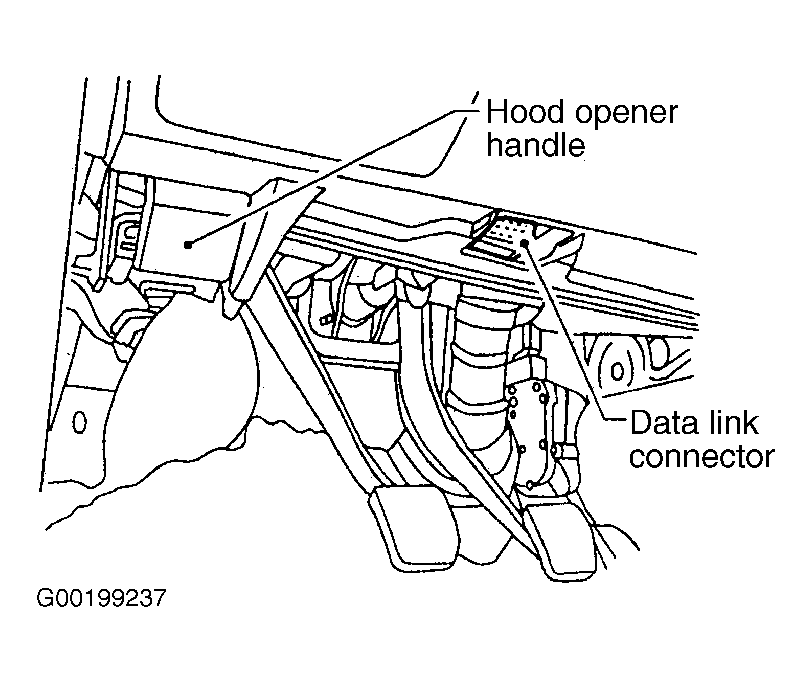

  2. Connect CONSULT-II to data link connector. See Figure.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.
  5. Touch "ABS".
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "START" on "SET RECORDING COND" screen.
  9. Touch "START" on "SELECT MONITOR ITEM".
  10. For data monitor mode descriptions, see Fig 1.

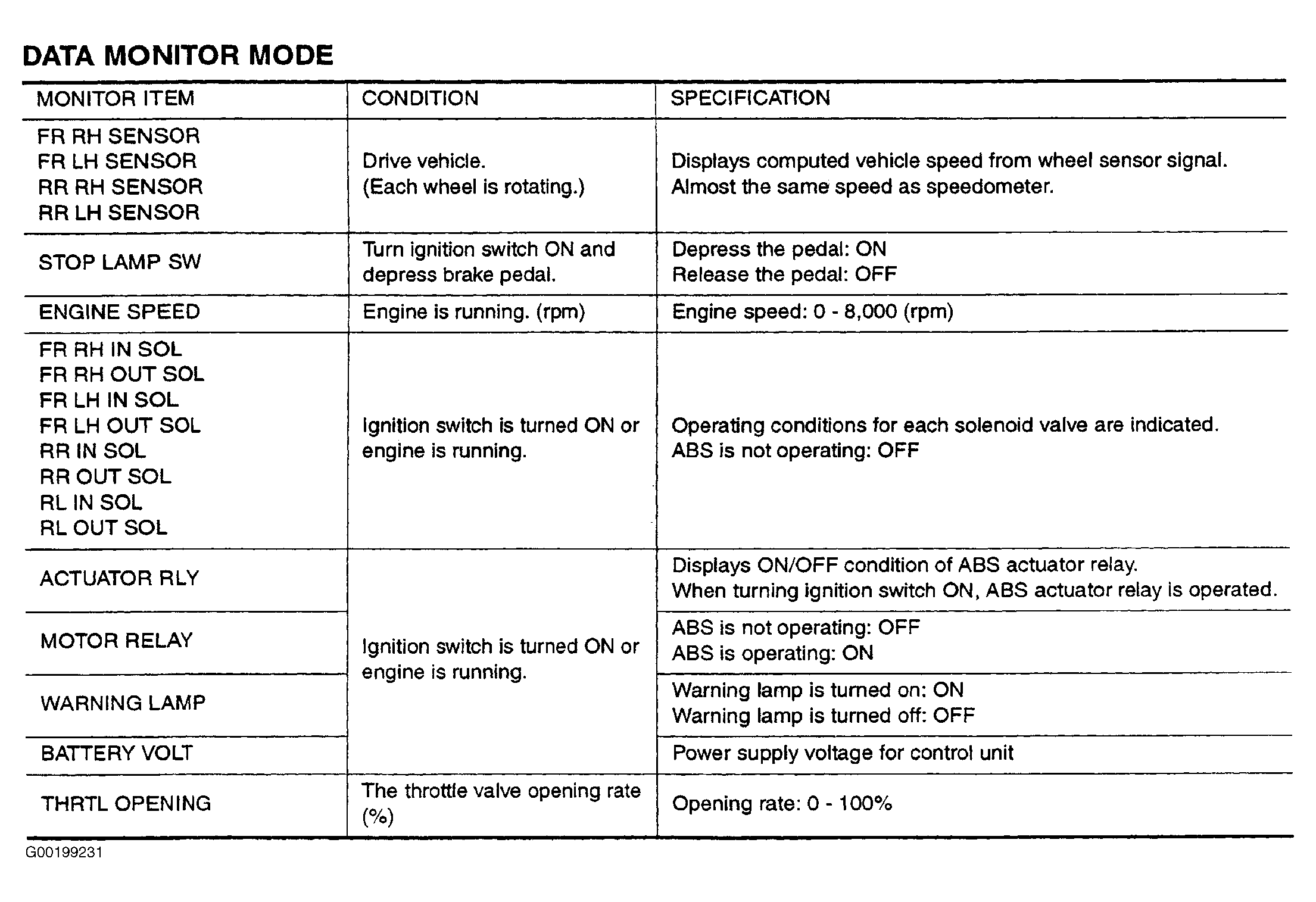

Fig 1: Data Monitoring Mode
G00199231Courtesy of NISSAN MOTOR CO., U.S.A.
