Power Steering Oil Pump: Components

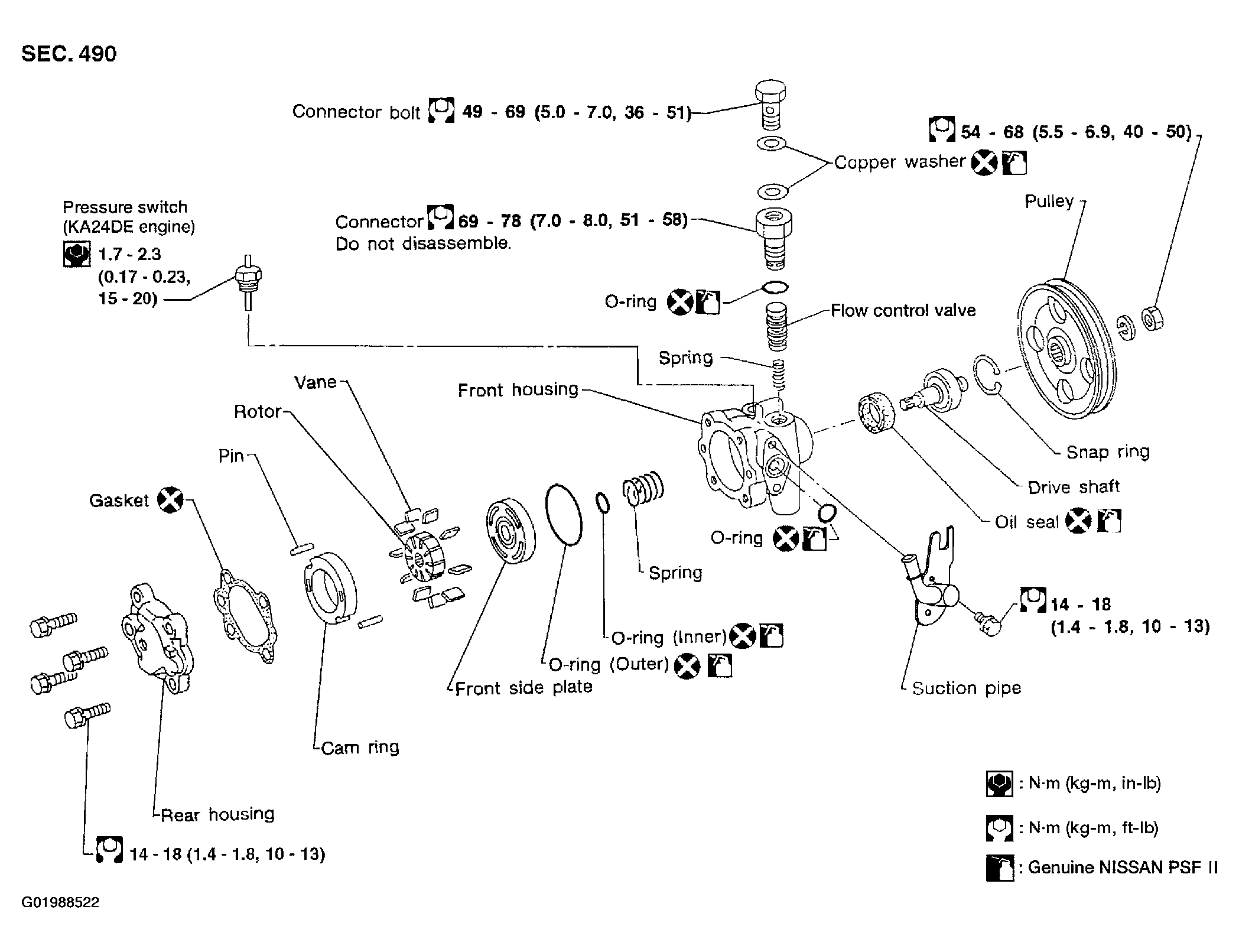

Fig 1: Power Steering Oil Pump Replacement Components And Fastener Torque Specification
G01988522Courtesy of NISSAN MOTOR CO., U.S.A.
