Checking Fluid Level

Check fluid level with engine OFF.

Check fluid level by referring to the scale on reservoir tank.

Fluid level should be checked at fluid temperatures of 0 to 30°C (32 to 86°F).

CAUTION:

Do not overfill .
Recommended fluid is Type F Automatic Transmission Fluid .

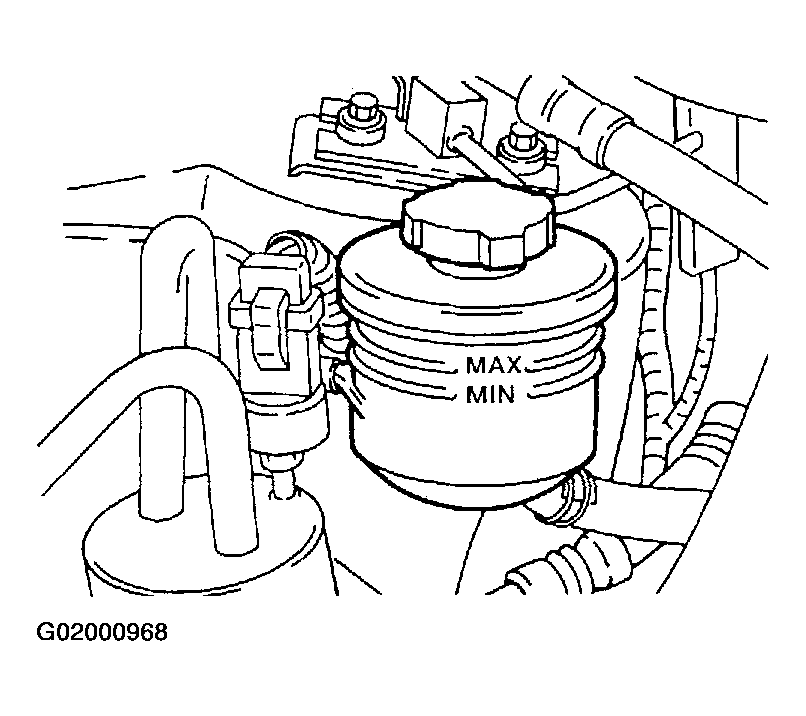

Fig 1: Checking Steering Fluid Level
Courtesy of NISSAN MOTOR CO., U.S.A.
