Setting SRT Codes (Using CONSULT-II)

Perform DTC CONFIRMATION TEST under corresponding DTC test under DIAGNOSTIC TESTS. If more than on SRT item needs to be set, perform DTC confirmation tests in order of priority. See Fig 1 .

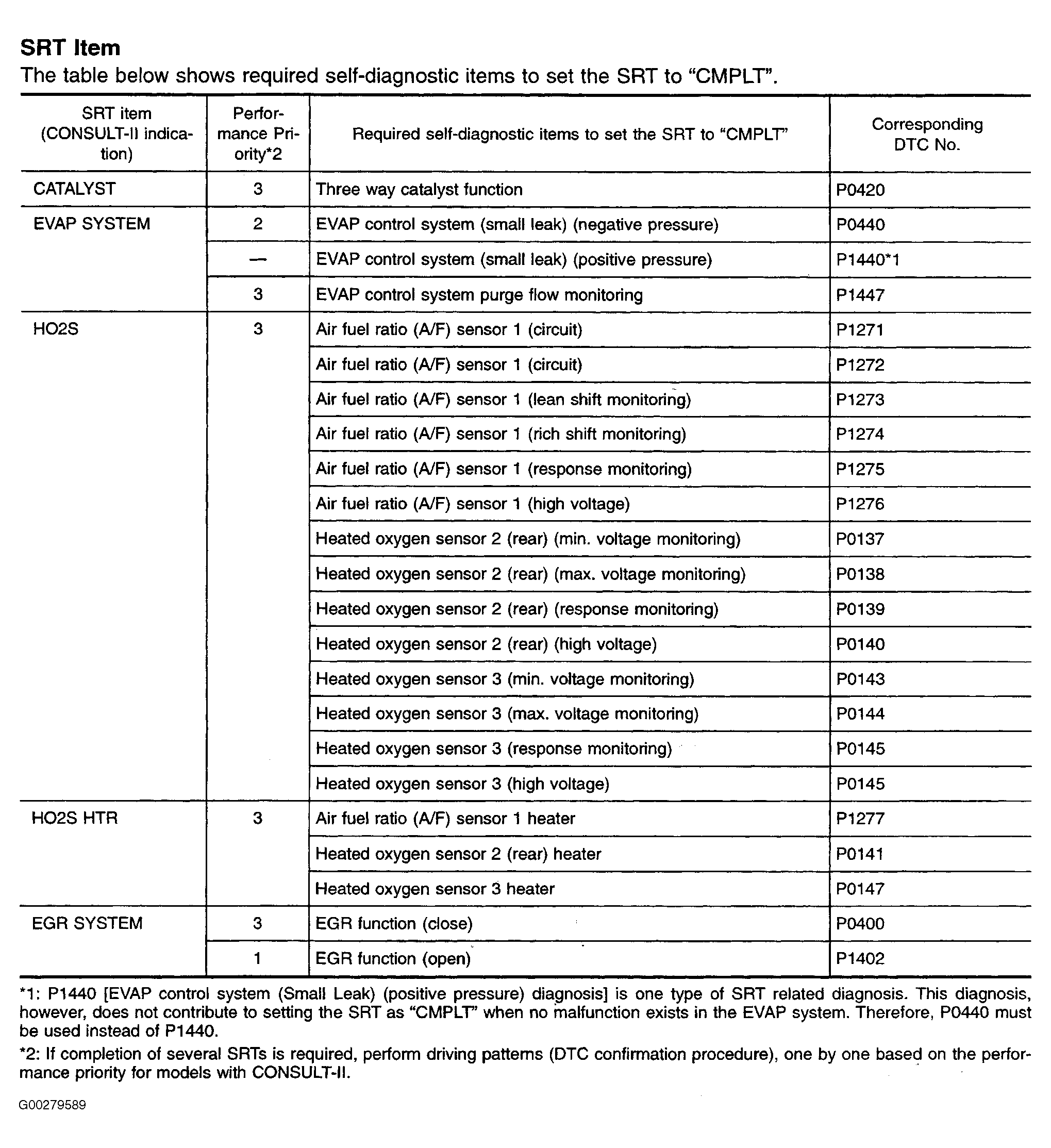

Fig 1: System Readiness Test Codes

Courtesy of NISSAN MOTOR CO., U.S.A.
