Reference Value In Data Monitor Mode

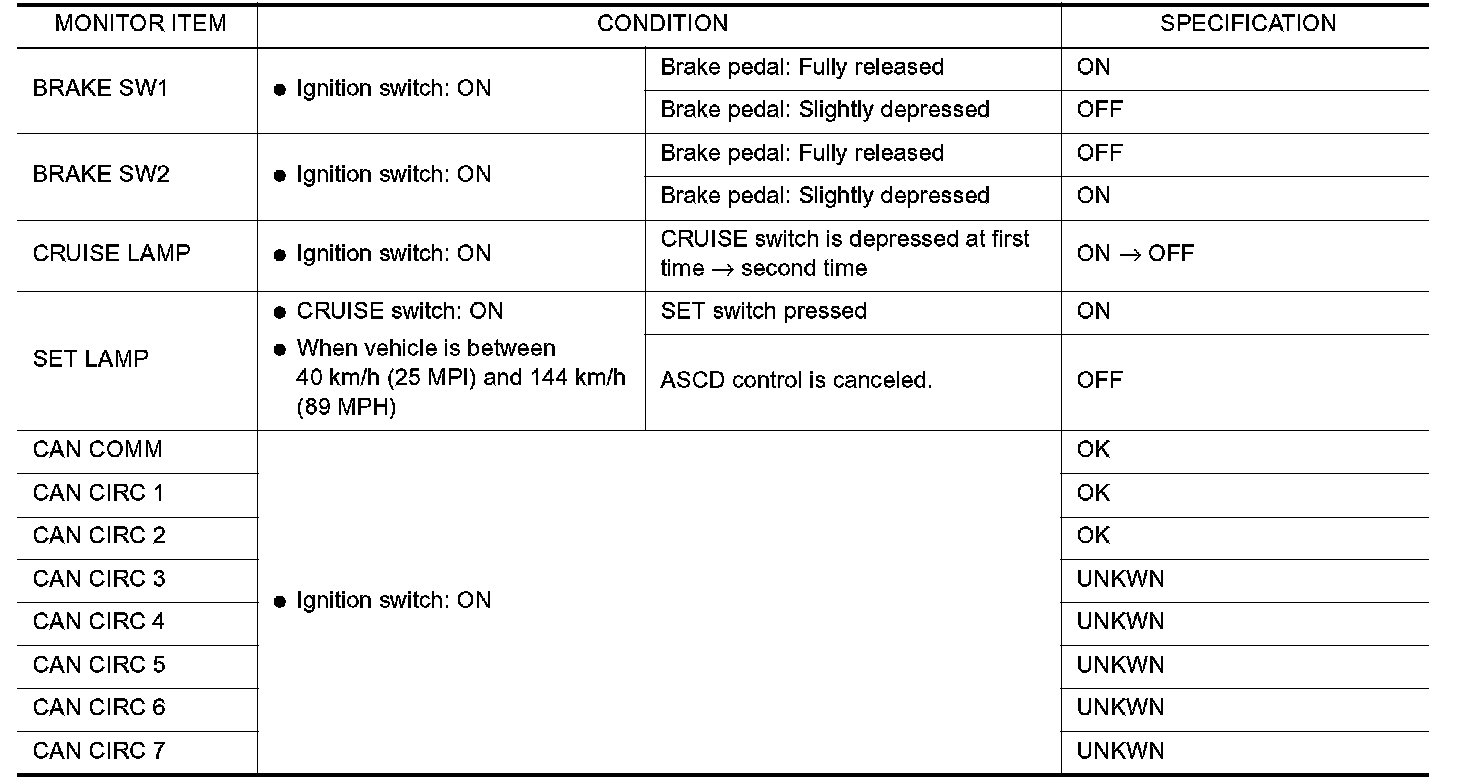

Consult-II Reference Value In Data Monitor Mode Part 1:

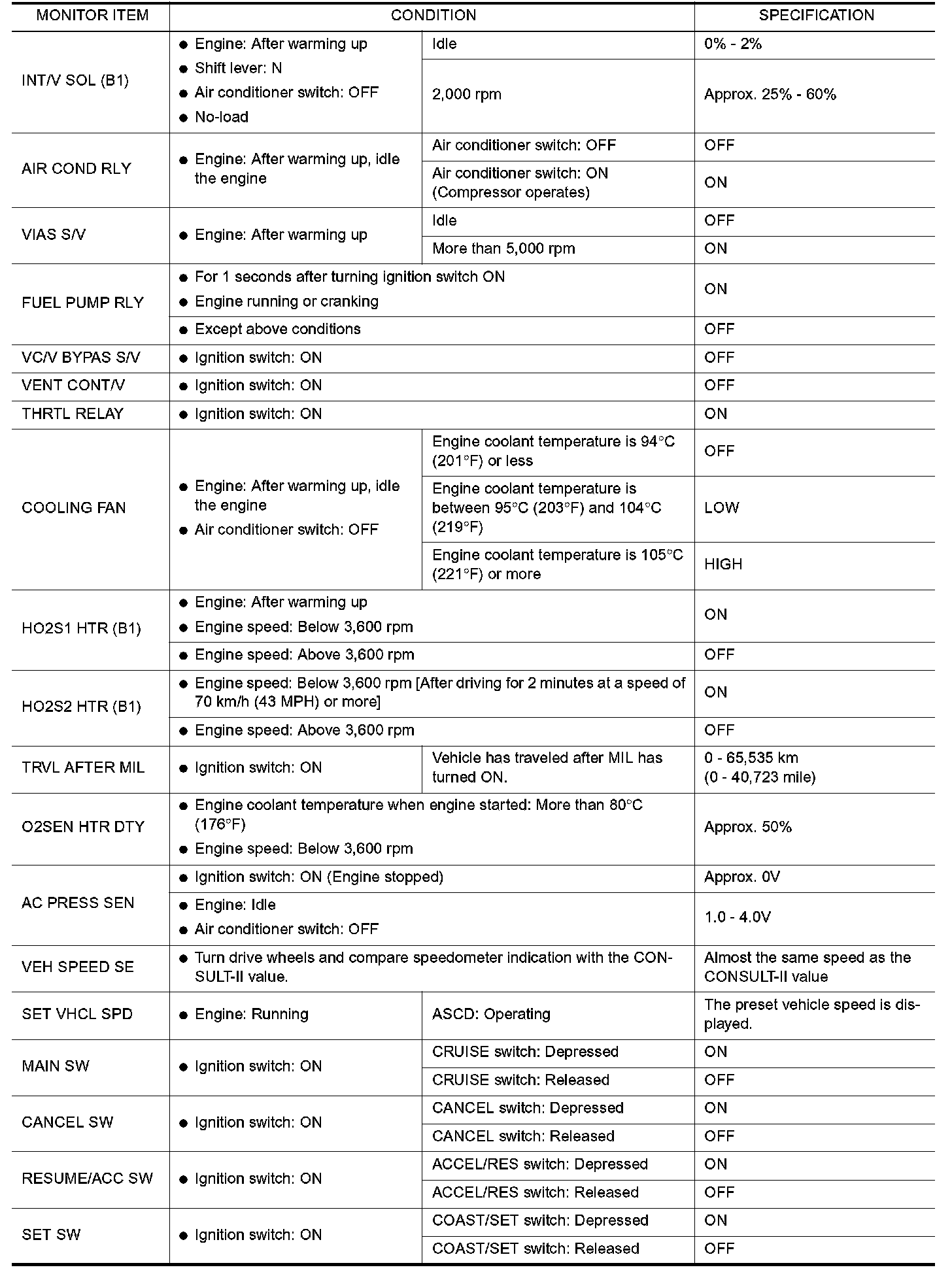

Consult-II Reference Value In Data Monitor Mode Part 2:

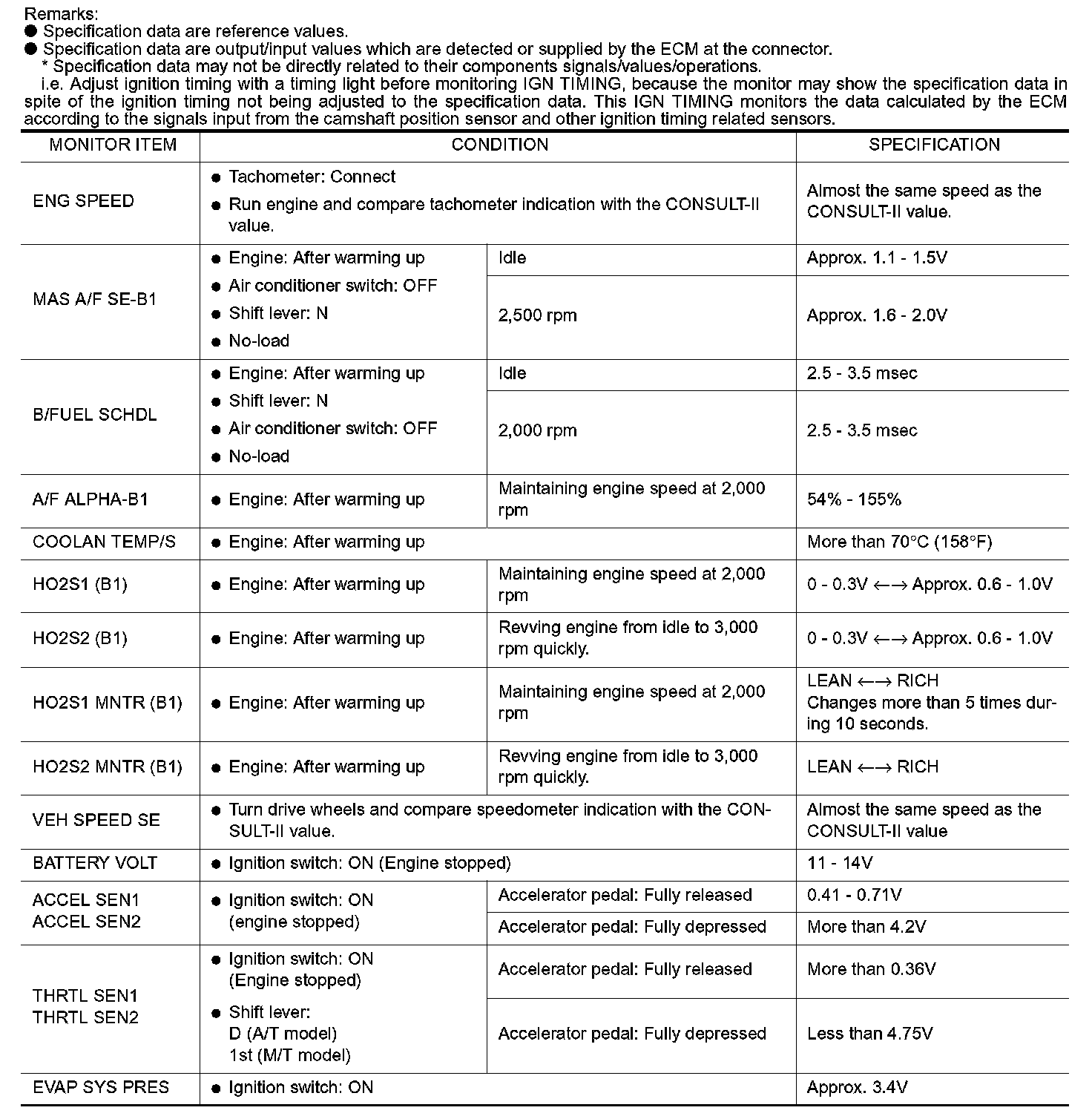

Consult-II Reference Value In Data Monitor Mode Part 3:

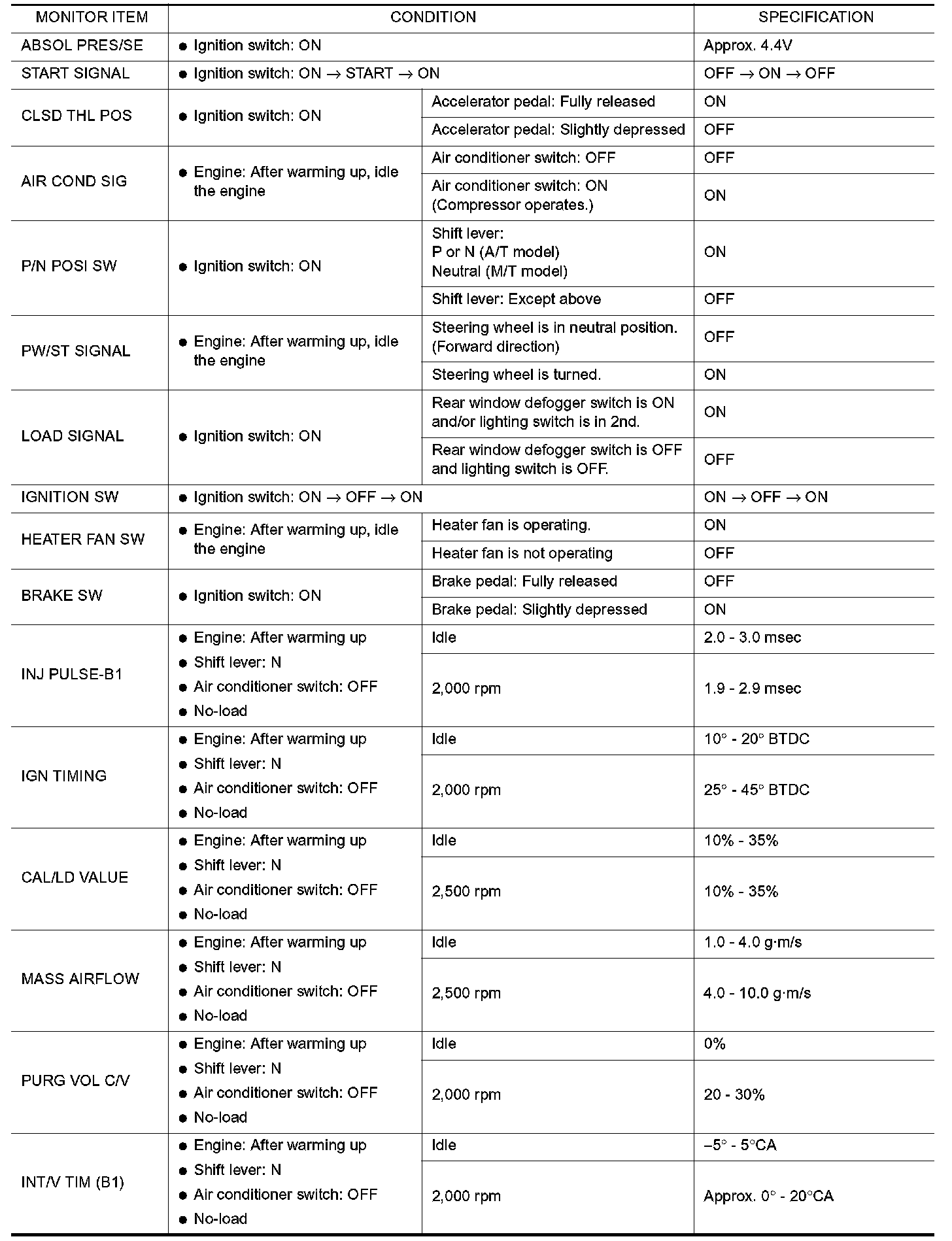

Consult-II Reference Value In Data Monitor Mode Part 4:
