Component Locations

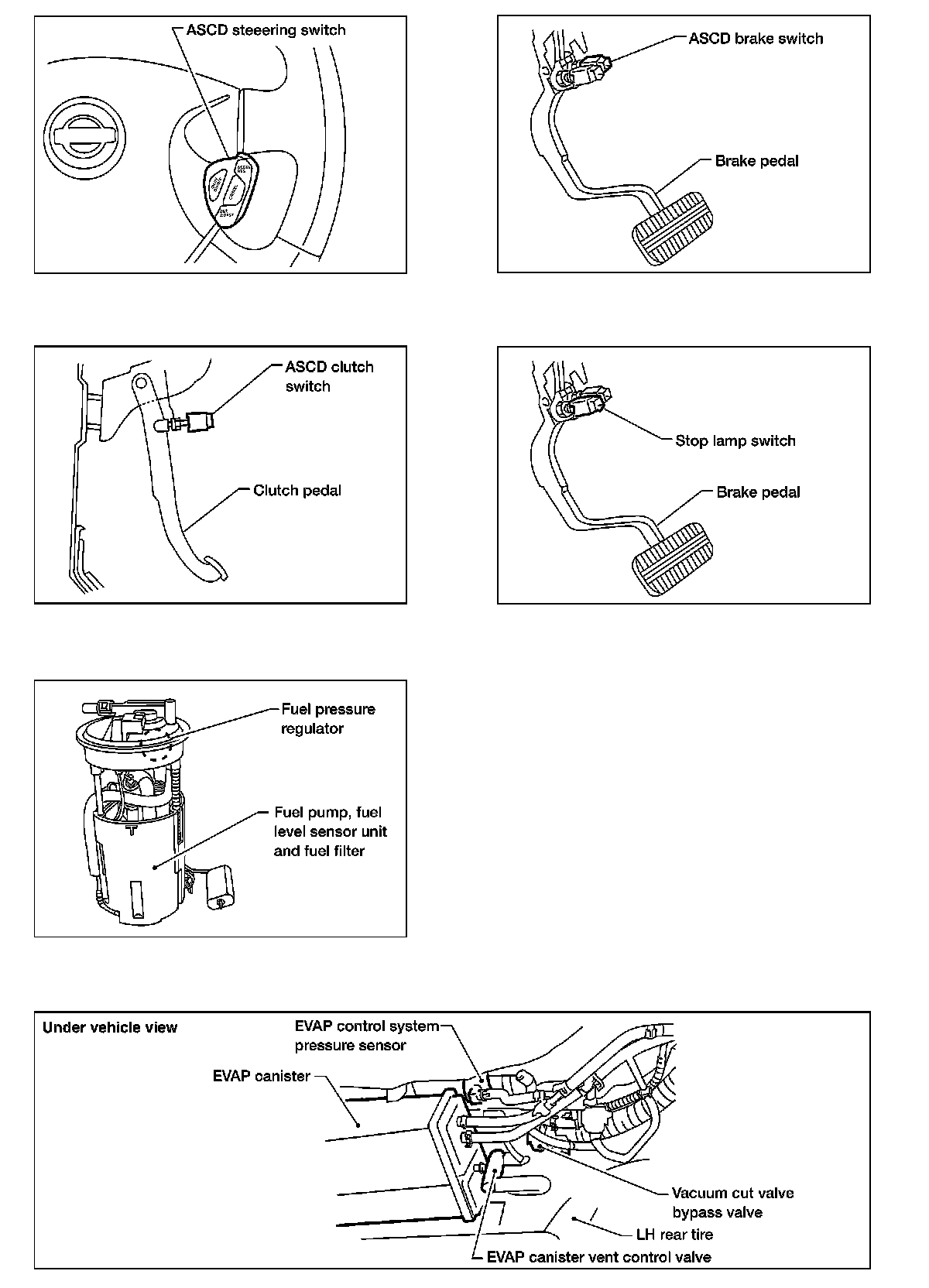

Engine Control Component Parts Location Part 1:

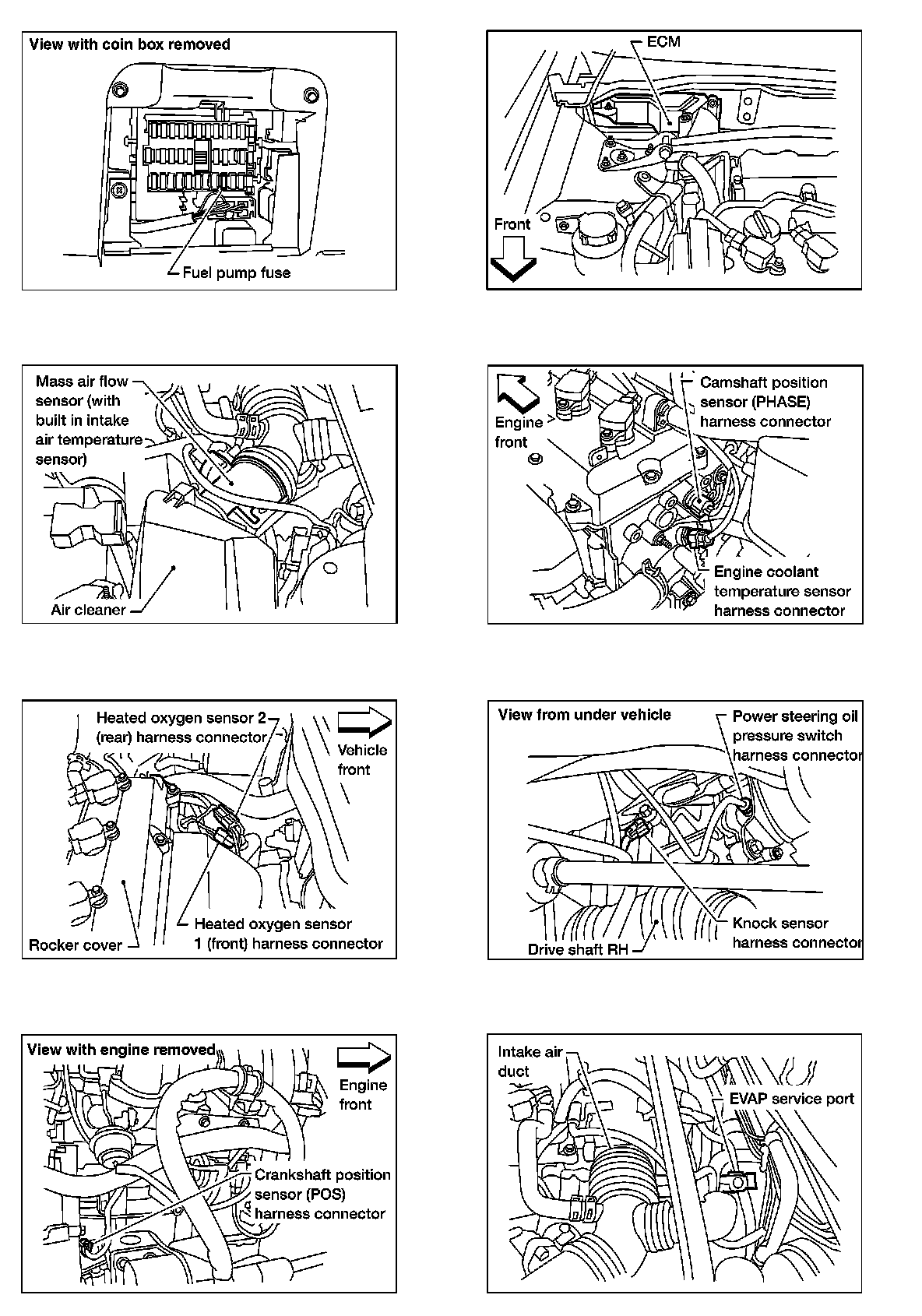

Engine Control Component Parts Location Part 2:

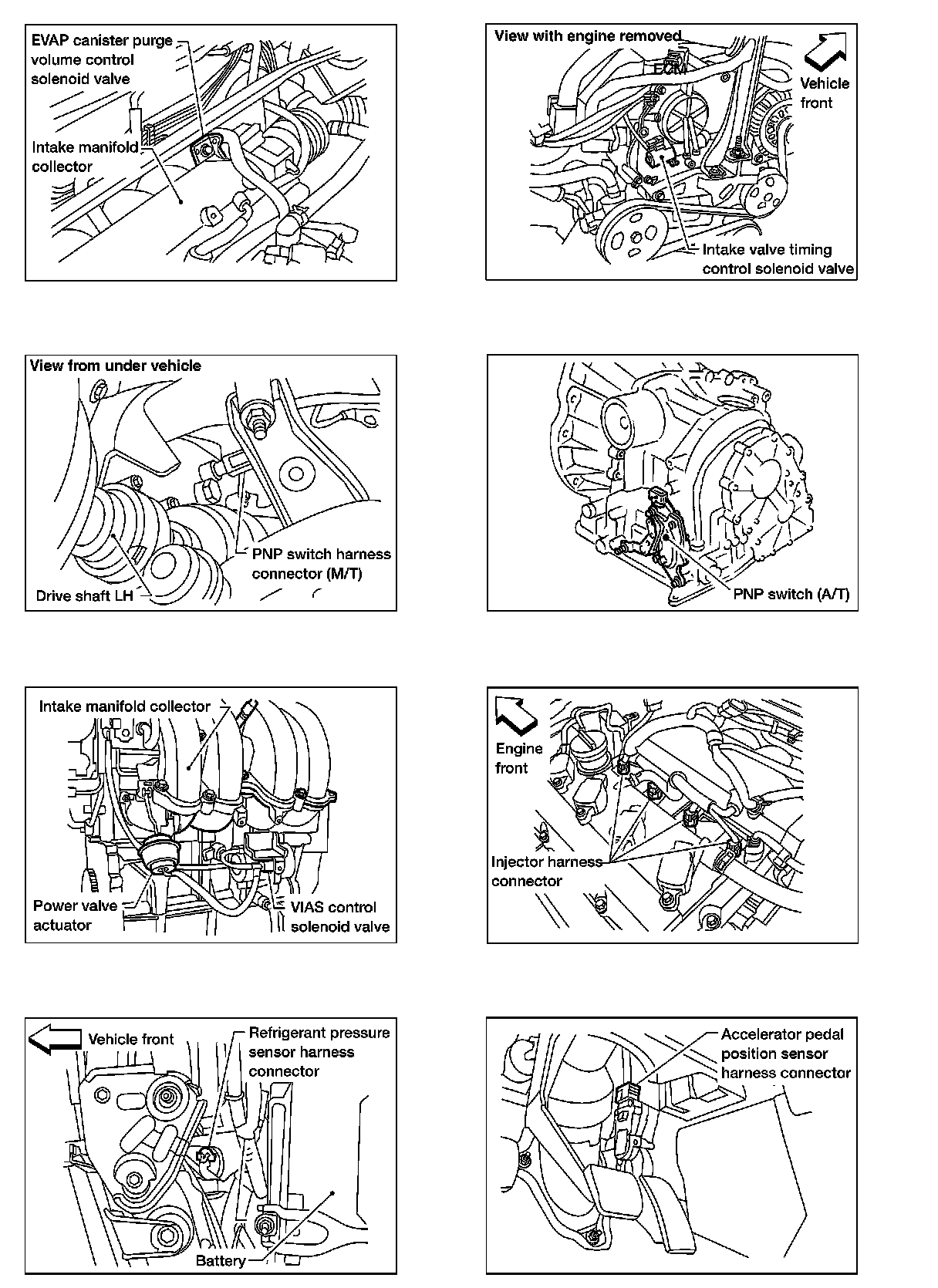

Engine Control Component Parts Location Part 3:
Engine Control Component Parts Location Part 4:
