Diagnostic Procedure 2

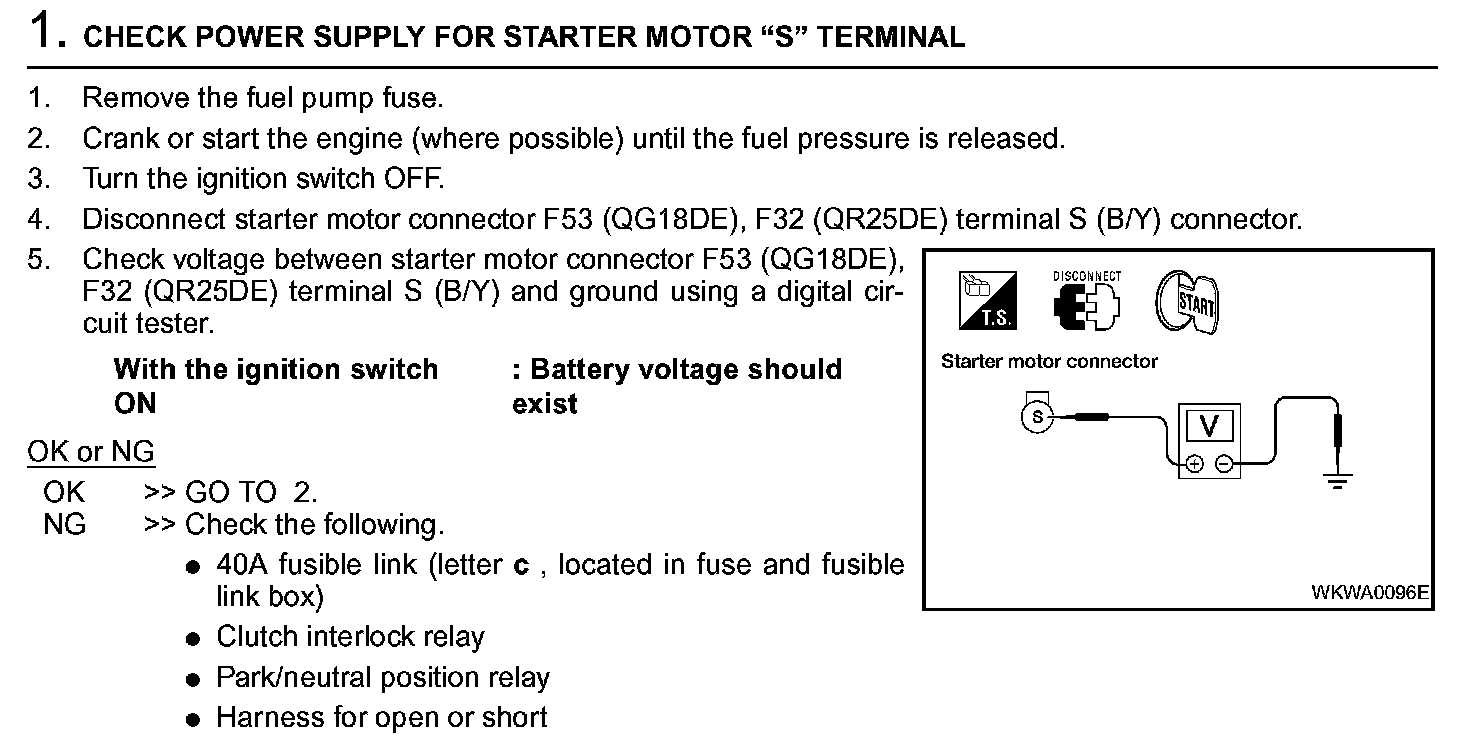

Diagnostic Procedure 2 Check "S" Terminal Circuit Step 1:

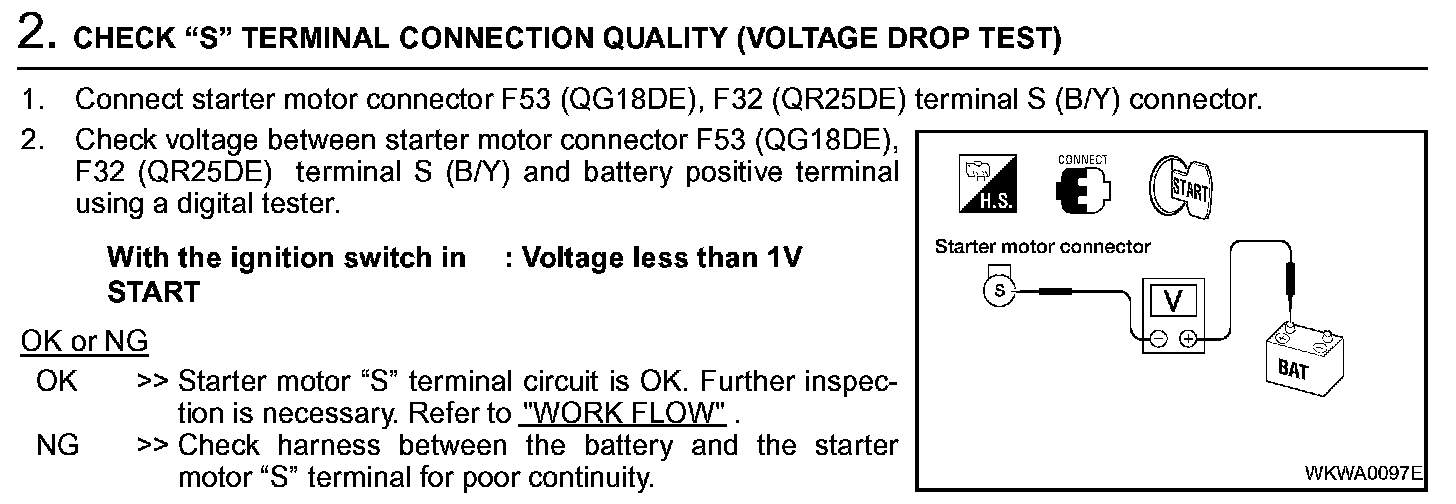

Diagnostic Procedure 2 Check "S" Terminal Circuit Step 2:
