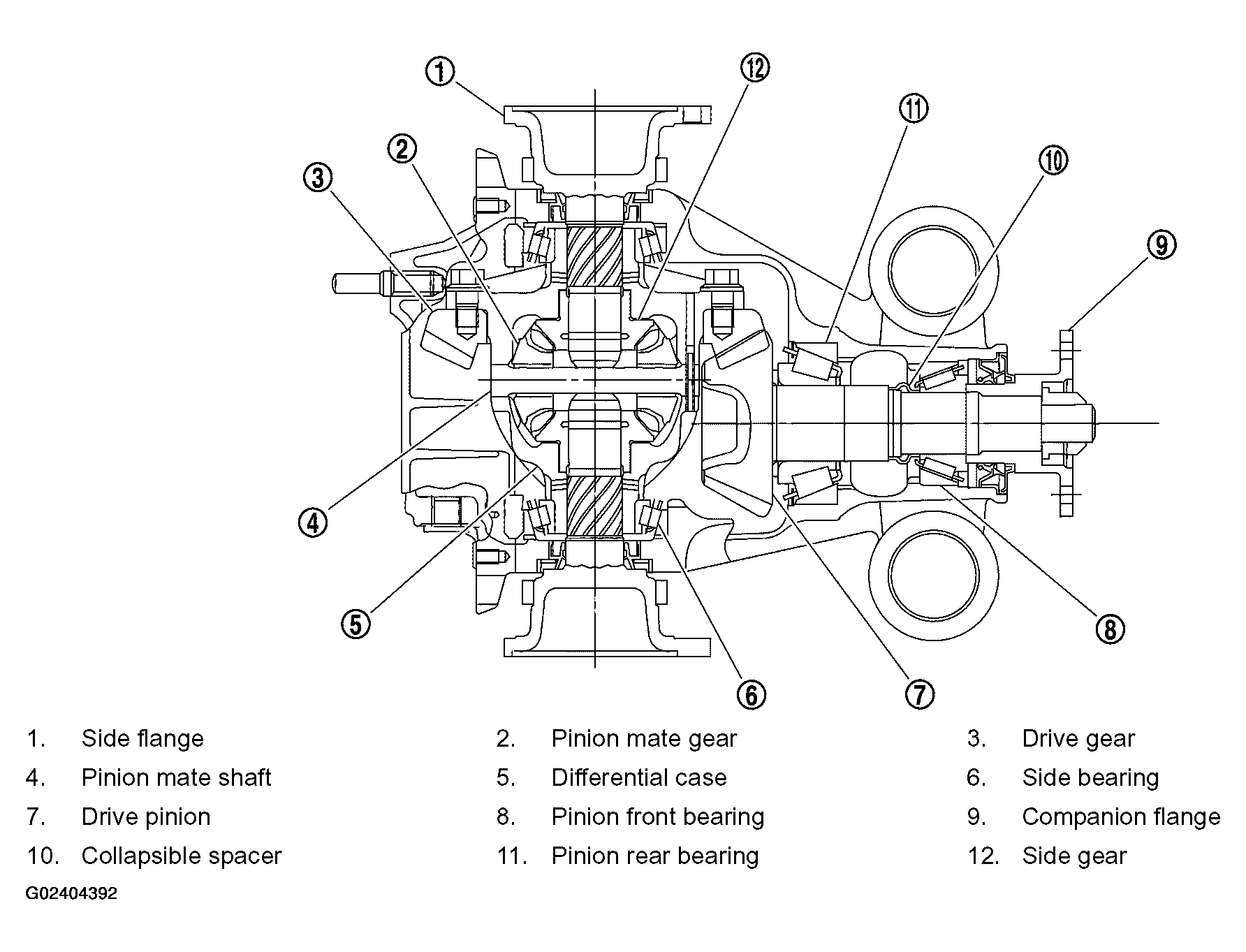

Fig 1: Cross-Sectional View Of Pinion (R200 (2-Pinion))
Courtesy of NISSAN MOTOR CO., U.S.A.

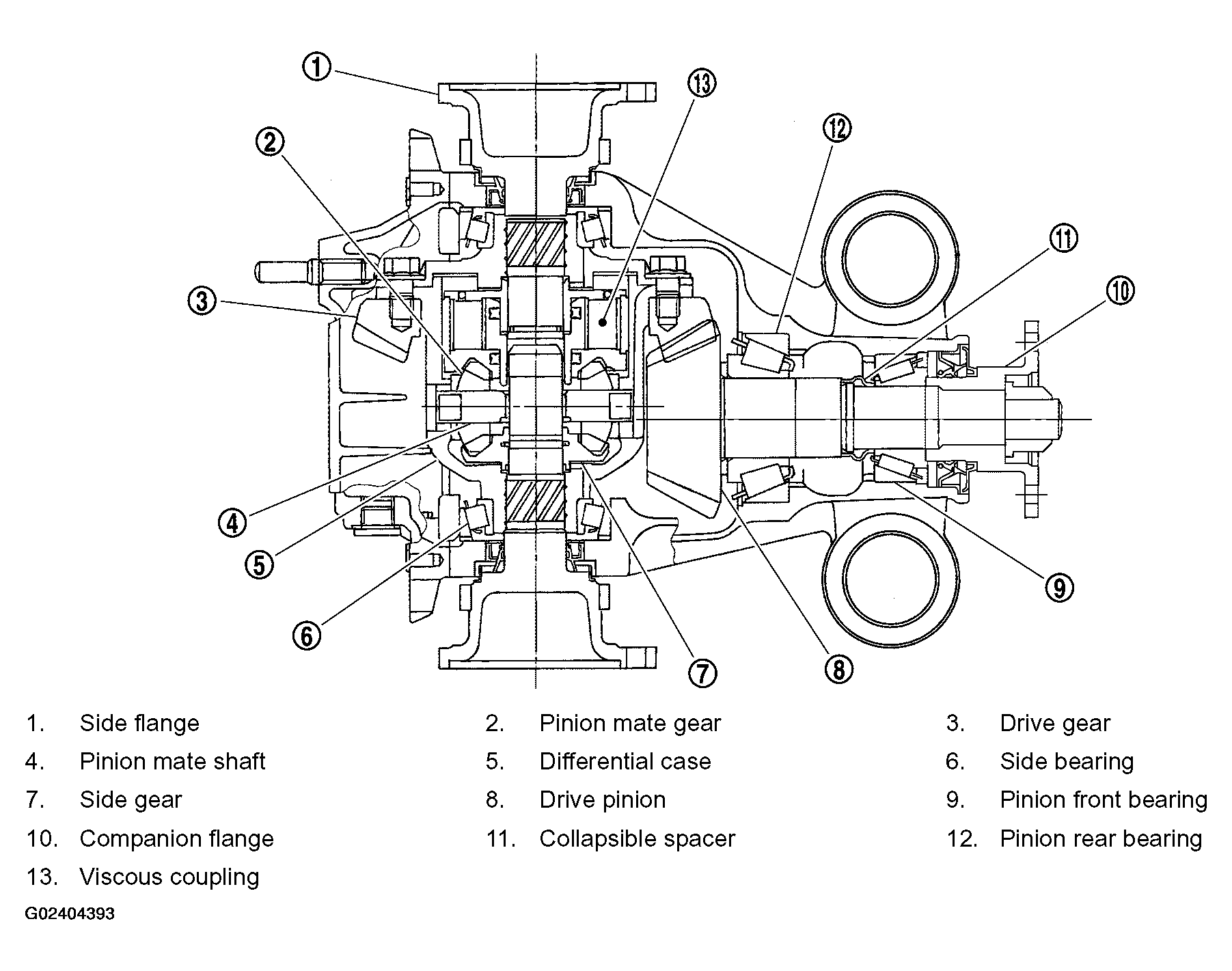

Fig 2: Cross-Sectional View Of Pinion (R200V (LSD))
